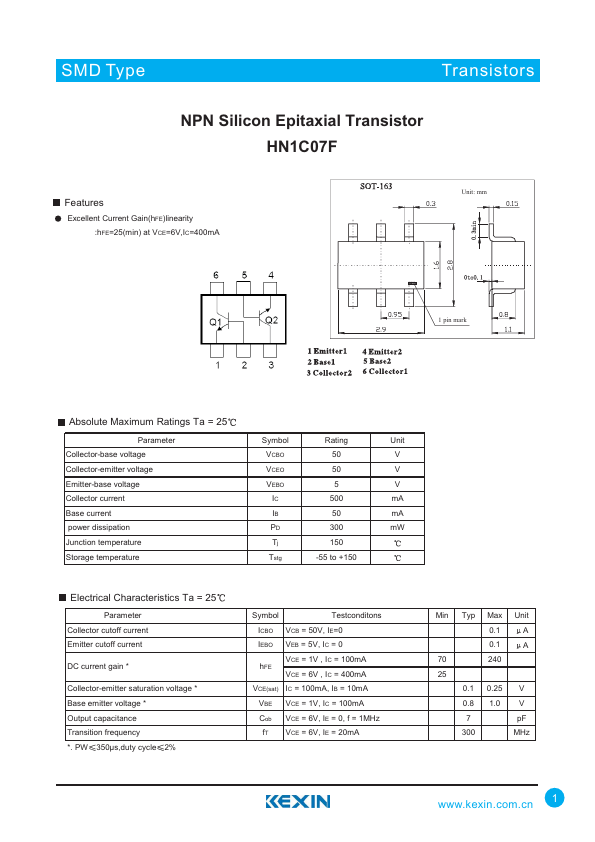

FEATURES
Excellent Current Gain(hFE)linearity :hFE=25(min) at VCE=6V,IC=400mA Unit: mm 1 pin mark ABSOLUTE MAXIMUM RATINGS
Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Base current power dissipation Junction temperature Storage temperature Symbol Rating Unit VCBO 50 V VCEO 50 V VEBO 5 V IC 500 mA IB 50 mA PD 300 mW Tj 150 Tstg -55 to +150 ELECTRICAL CHARACTERISTICS
Ta = 25 Parameter Collector cutoff current Emitter cutoff current DC current gain * Collector-emitter saturation voltage * Base emitter voltage * Output capacitance Transition frequency *. PW 350ìs,duty cycle 2% Symbol Testconditons ICBO VCB = 50V, IE=0 IEBO VEB = 5V, IC = 0 VCE = 1V , IC = 100mA hFE VCE = 6V , IC = 400mA VCE(sat) IC = 100mA, IB = 10mA VBE VCE = 1V, IC = 100mA Cob VCE = 6V, IE = 0, f = 1MHz fT VCE = 6V, IE = 20mA Min Typ Max Unit 0.1 A 0.1 A 70 240 25 0.1 0.25 V 0.8 1.0 V 7 pF 300 MHz 1
