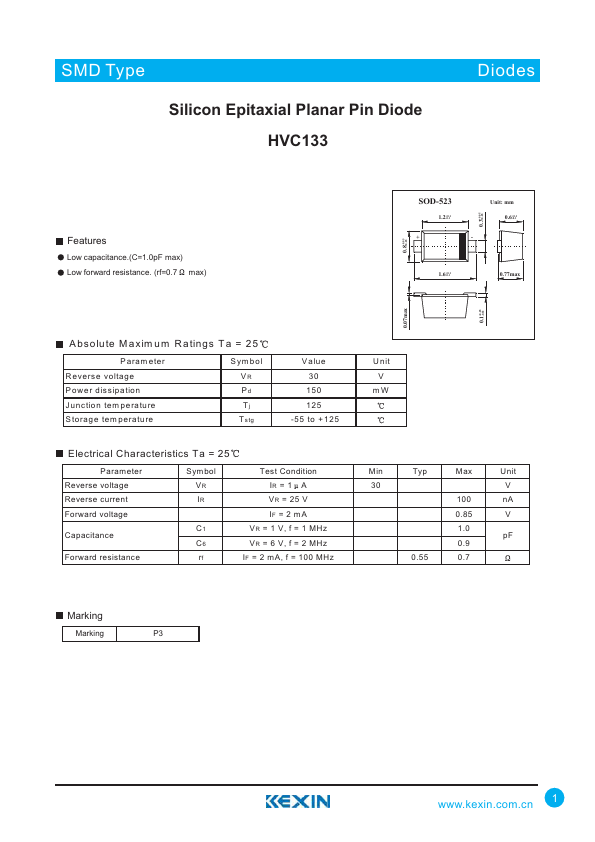

HVC133 Datasheet PDF

FEATURES

Low capacitance.(C=1.0pF max) Low forward resistance. (rf=0.7 max) +0.05 0.8 -0.05 SOD-523 1.2+0.1 -0.1 + +0.05 0.3 -0.05 Unit: mm 0.6+0.1 -0.1 - 1.6+0.1 -0.1 0.77max +0.05 0.1 -0.02 0.07max Absolute M axim um R atings T a = 25 Param eter Reverse voltage Power dissipation Junction tem perature Storage tem perature Sym bol VR Pd Tj T stg V a lu e 30 150 125 -55 to +125

ELECTRICAL CHARACTERISTICS

Ta = 25 P aram eter Reverse voltage Reverse current Forward voltage Capacitance Forward resistance Symbol VR IR C1 C6 rf Test Condition IR = 1 A VR = 25 V IF = 2 mA VR = 1 V, f = 1 MHz VR = 6 V, f = 2 MHz IF = 2 mA, f = 100 MHz U n it V mW Min Typ Max Unit 30 V 100 nA 0.85 V 1.0 pF 0.9 0.55 0.7 Marking Marking P3 1
