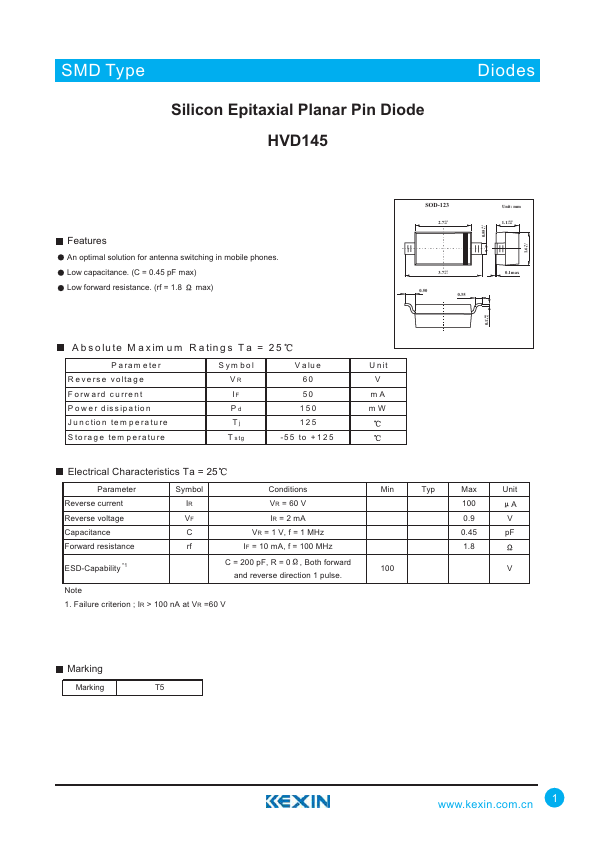

FEATURES
An optimal solution for antenna switching in mobile phones. Low capacitance. (C = 0.45 pF max) Low forward resistance. (rf = 1.8 max) SOD-123 2.7+0.1 -0.1 Unit: mm 1.1+0.05 -0.05 3.7+0.1 -0.1 0.50 0.35 0.1max +0.05 0.1 -0.02 A b s o lu te M a x im u m R a tin g s T a = 2 5 P aram eter R e ve rs e vo lta g e F orw ard current P o w e r d is s ip a tio n J u n c tio n te m p e ra tu re S torage tem perature Sym bol VR IF Pd Tj T stg V a lu e 60 50 150 125 -55 to +125 U n it V mA mW ELECTRICAL CHARACTERISTICS
Ta = 25 Parameter Symbol Conditions Reverse current IR VR = 60 V Reverse voltage VF IR = 2 mA Capacitance C VR = 1 V, f = 1 MHz Forward resistance rf IF = 10 mA, f = 100 MHz ESD-Capability *1 C = 200 pF, R = 0 , Both forward and reverse direction 1 pulse. Note 1. Failure criterion ; IR > 100 nA at VR =60 V Min Typ Max Unit 100 A 0.9 V 0.45 pF 1.8 100 V Marking Marking T5 1
