IRLML2402 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 20V.
  • ID = 1.2 A( VGS = 4.5V).
  • RDS(ON) ＜ 250mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 350mΩ (VGS = 2.7V) SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 +0.1 2.4 -0.1 1 2 0.95 +0.1 -0.1 D 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 G S 0-0.1 +0.1 0.38 -0.1 1. Gate 2. Source 3. Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IRLML2402 HEXFET Power MOSFET International Rectifier
IRLML2402GPBF POWER MOSFET International Rectifier
IRLML2402PBF POWER MOSFET International Rectifier
IRLML2402PBF-1 Power MOSFET International Rectifier
IRLML2030 Power MOSFET International Rectifier

Other Datasheets by Kexin Semiconductor

Part Number Description
IRLML2502 N-Channel MOSFET
IRLML0060 N-Channel MOSFET
IRLML0100 N-Channel MOSFET
IRLML5203 P-Channel MOSFET
IRLML6401 P-Channel Enhancement MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

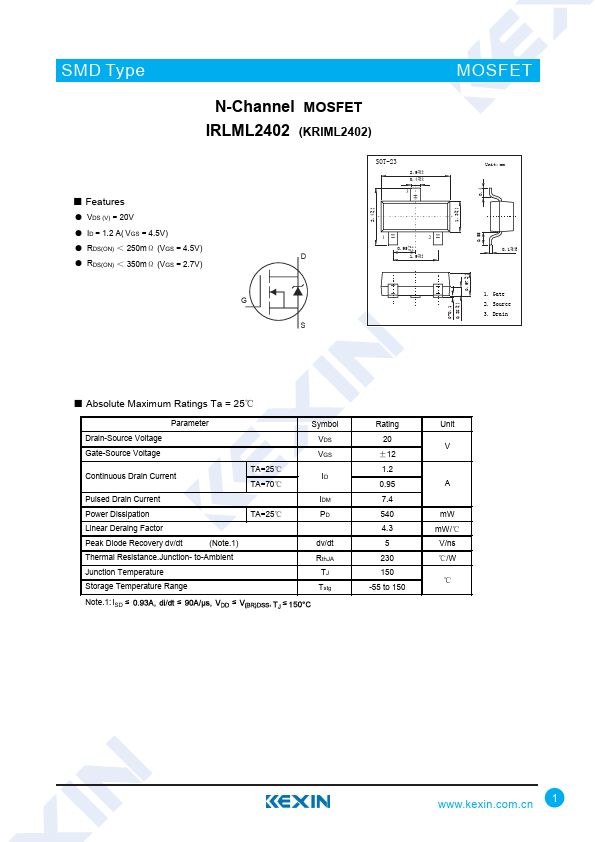

SMD Type MOSFET N-Channel MOSFET IRLML2402 (KRlML2402) ■ Features ● VDS (V) = 20V ● ID = 1.2 A( VGS = 4.5V) ● RDS(ON) ＜ 250mΩ (VGS = 4.5V) ● RDS(ON) ＜ 350mΩ (VGS = 2.7V) SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 +0.1 2.4 -0.1 1 2 0.95 +0.1 -0.1 D 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 G S 0-0.1 +0.1 0.38 -0.1 1. Gate 2. Source 3. Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation Linear Deraing Factor Peak Diode Recovery dv/dt (Note.1) Thermal Resistance.Junction- to-Ambient Junction Temperature Storage Temperature Range Note.
