KA200M317 - Three Terminal Positive Voltage Regulator

Features

  • ƽ Internal thermal overload protection ƽ Internal short circuit current limiting ƽ Output transistor safe operating area compensation Ɣ This monolithic integrated circuit is an adjustable 3-terminal positive voltage regulator designed to supply more than 1.5A of load current with an output voltage adjustable over a 1.2 to 37V. It employs internal current limiting , thermal shut-down and safe area compensation. +0. 9. 70 2 - 0. 2 TO-252 6. 50+0. 15 - 0. 15 5. 30+0. 2 - 0. 2 4 +0. 1. 50 15 - 0.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KA2002-BE10A Compact Battery drivable thick film thermal printhead Rohm
KA2002-BE13A ECR 2.7V Print Voltage Rohm
KA2003-BE10A Compact Battery drivable thick film thermal printhead Rohm
KA2003-BE51A ECR 2.7V Print Voltage Rohm
KA2004-BE10A Compact Battery drivable thick film thermal printhead Rohm

Other Datasheets by Kexin Semiconductor

Part Number Description
KA280M05 Three Terminal Positive Voltage Regulator
KA280M06 Three Terminal Positive Voltage Regulator
KA280M08 Three Terminal Positive Voltage Regulator
KA280M10 Three Terminal Positive Voltage Regulator
KA280M12 Three Terminal Positive Voltage Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

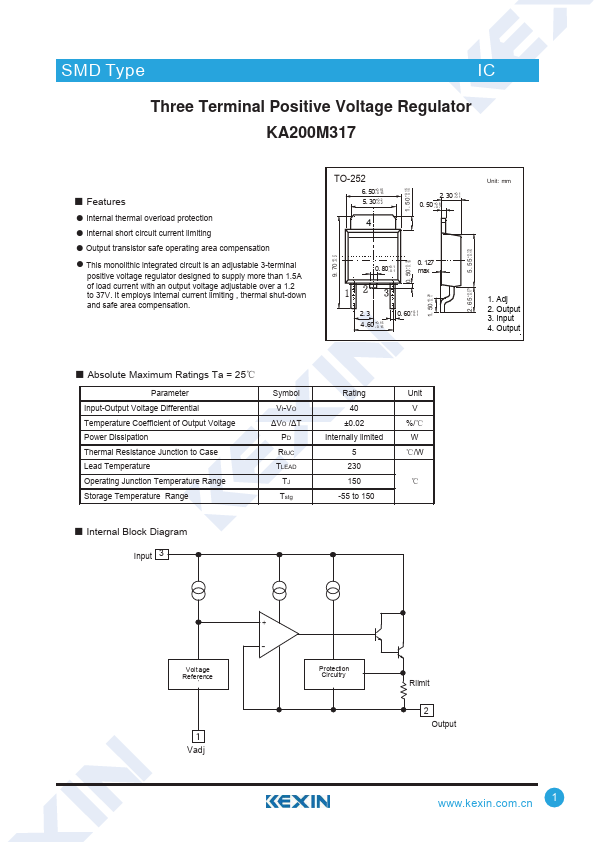

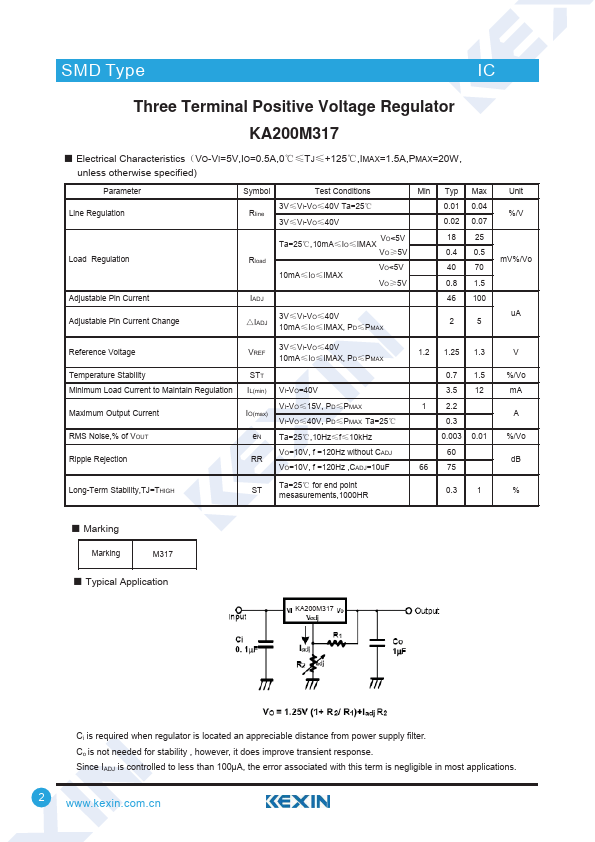

SMD Type IC Three Terminal Positive Voltage Regulator KA200M317 Ƶ Features ƽ Internal thermal overload protection ƽ Internal short circuit current limiting ƽ Output transistor safe operating area compensation Ɣ This monolithic integrated circuit is an adjustable 3-terminal positive voltage regulator designed to supply more than 1.5A of load current with an output voltage adjustable over a 1.2 to 37V. It employs internal current limiting , thermal shut-down and safe area compensation. +0. 9. 70 2 - 0. 2 TO-252 6. 50+0. 15 - 0. 15 5. 30+0. 2 - 0. 2 4 +0. 1. 50 15 - 0. 15 2. 30 +0. 1 - 0. 1 0. 50 +0. 8 - 0. 7 0. 80+0. 1 - 0. 1 0. 127 max +0. 0. 50 15 - 0. 15 +0. 1. 50 28 - 0. 1 2. 3 4.60 +0. 15 - 0. 15 0. 60+ 0. 1 - 0. 1 +0. 2. 65 25 - 0. 1 +0. 5. 55 15 - 0. 15 Unit: mm 1.
