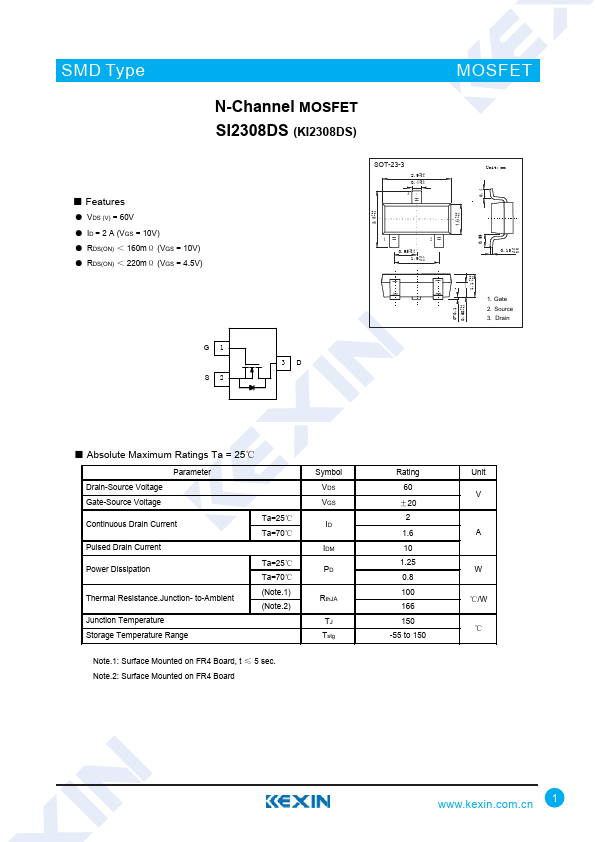

KI2308DS
KI2308DS is N-Channel MOSFET manufactured by Kexin Semiconductor.
Features
- VDS (V) = 60V
- ID = 2 A (VGS = 10V)
- RDS(ON) ＜ 160mΩ (VGS = 10V)
- RDS(ON) ＜ 220mΩ (VGS = 4.5V)
+0.2 2.8 -0.1
SOT-23-3
2.9 +0.2 -0.1
0.4 +0.1 -0.1
0.95 +0.1 -0.1 1.9 +0.1 -0.2
+0.2 1.6 -0.1
Unit: mm 0.15 +0.02
-0.02
+0.2 1.1 -0.1
G1 S2
3D
0-0.1 +0.1 0.68
-0.1
1. Gate 2. Source 3. Drain
- Absolute Maximum Ratings Ta = 25℃
Parameter
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current Pulsed Drain Current
Ta=25℃ Ta=70℃
Power Dissipation
Thermal Resistance.Junction- to-Ambient Junction Temperature Storage Temperature Range
Ta=25℃ Ta=70℃ (Note.1) (Note.2)
Note.1: Surface Mounted on FR4 Board, t ≤ 5 sec. Note.2: Surface Mounted on FR4 Board
Symbol VDS VGS ID IDM PD
Rth JA TJ Tstg
Rating 60 ±20 2 1.6 10 1.25 0.8 100 166 150
-55 to 150
Unit...
