KI8810DS - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 20V.
  • ID = 6 A.
  • RDS(ON) ＜ 22mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 30mΩ (VGS = 2.5V) D.
  • ESD protected G +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 S 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Pow.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description
KI8205A Dual N-Channel Enhancement MOSFET
KI8205T Dual N-Channel High Density Trench MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

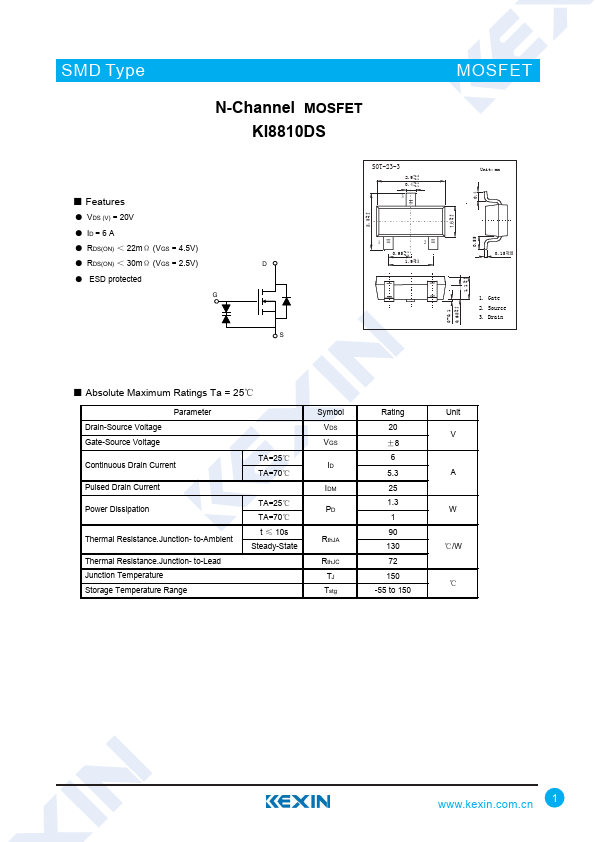

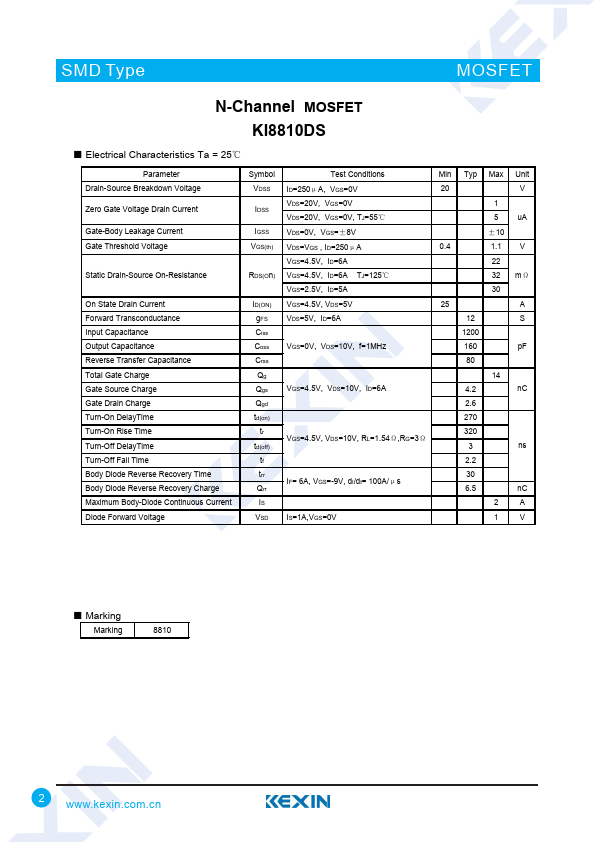

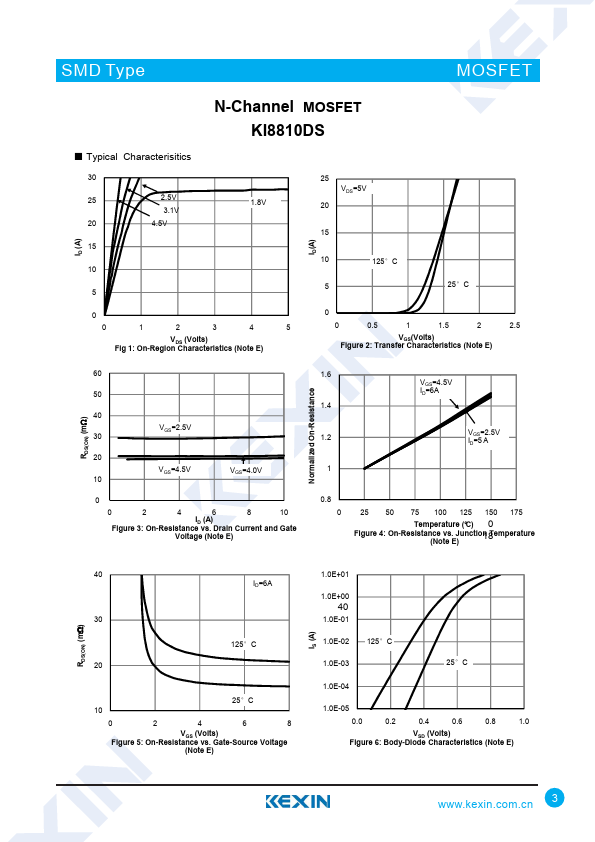

SMD Type N-Channel MOSFET KI8810DS ■ Features ● VDS (V) = 20V ● ID = 6 A ● RDS(ON) ＜ 22mΩ (VGS = 4.5V) ● RDS(ON) ＜ 30mΩ (VGS = 2.5V) D ● ESD protected G +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 S 0-0.1 +0.1 0.68 -0.1 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 MOSFET Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Lead Junction Temperature Storage Temperature Range TA=25℃ TA=70℃ TA=25℃ TA=70℃ t ≤ 10s Steady-State Symbol VDS VGS ID IDM PD RthJA RthJC TJ Tstg Rating 20 ±8 6 5.3 25 1.
