KQB6N25 - 250V N-Channel MOSFET

Key Features

  • 5.5A, 500 V. RDS(ON) = 1 @ VGS = 10 V Low gate charge (typical 6.6nC) Low Crss(typical 7.5pF) Fast switching 100% avalanche tested lmproved dv/dt capability + 5 .2 8 0.2 -0.2 + 8 .7 0.2 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm + 1 .2 7 0.1 -0.1 5.60 + 0 .2 -0.2 5 1.27+0.1 -0.1 0.1max +0.2 2.54-0.2 +0.1 5.08-0.1 0.81+0.1 -0.1 2.54 + 2 .5 4 0.2 -0.2 0.4+0.2 -0.2 1 5 . 2 11Ggaattee 22Ddrraaiinn 33Ssoouurrccee Absolute Maximum Ratings Ta = 25 Parameter Drain to S.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Kexin Semiconductor

Part Number Description
KQB6N70 700V N-Channel MOSFET
KQB630 200V N-Channel MOSFET
KQB9N50 500V N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

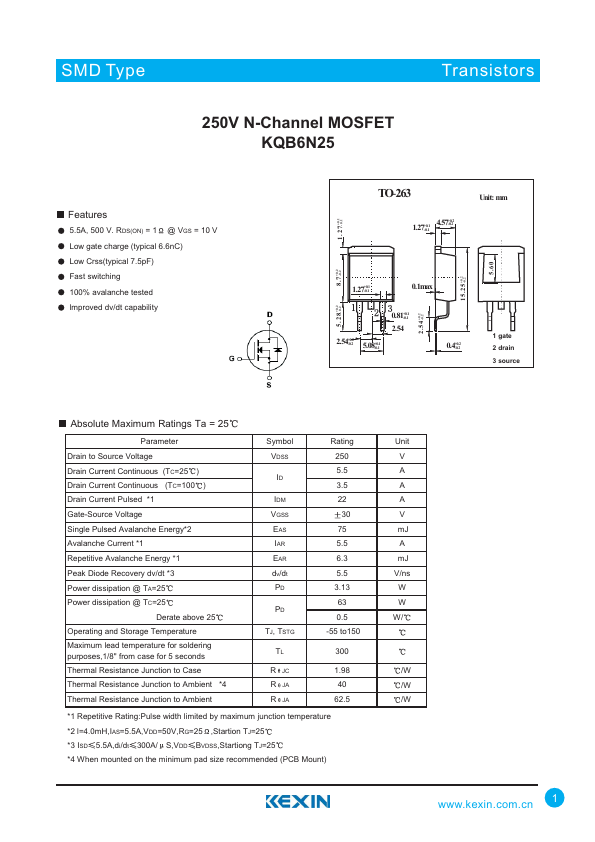

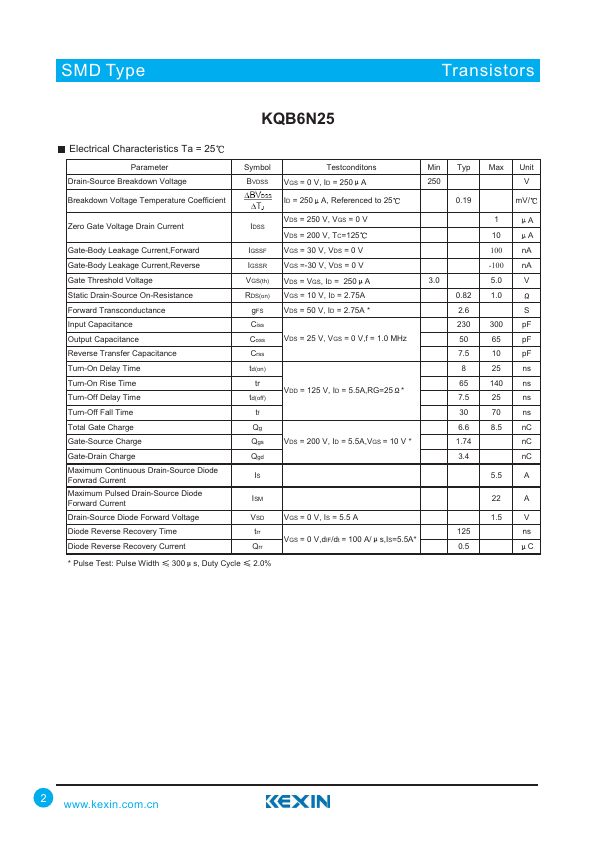

SMD Type TransistIoCrs 250V N-Channel MOSFET KQB6N25 Features 5.5A, 500 V. RDS(ON) = 1 @ VGS = 10 V Low gate charge (typical 6.6nC) Low Crss(typical 7.5pF) Fast switching 100% avalanche tested lmproved dv/dt capability + 5 .2 8 0.2 -0.2 + 8 .7 0.2 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm + 1 .2 7 0.1 -0.1 5.60 + 0 .2 -0.2 5 1.27+0.1 -0.1 0.1max +0.2 2.54-0.2 +0.1 5.08-0.1 0.81+0.1 -0.1 2.54 + 2 .5 4 0.2 -0.2 0.4+0.2 -0.2 1 5 .
