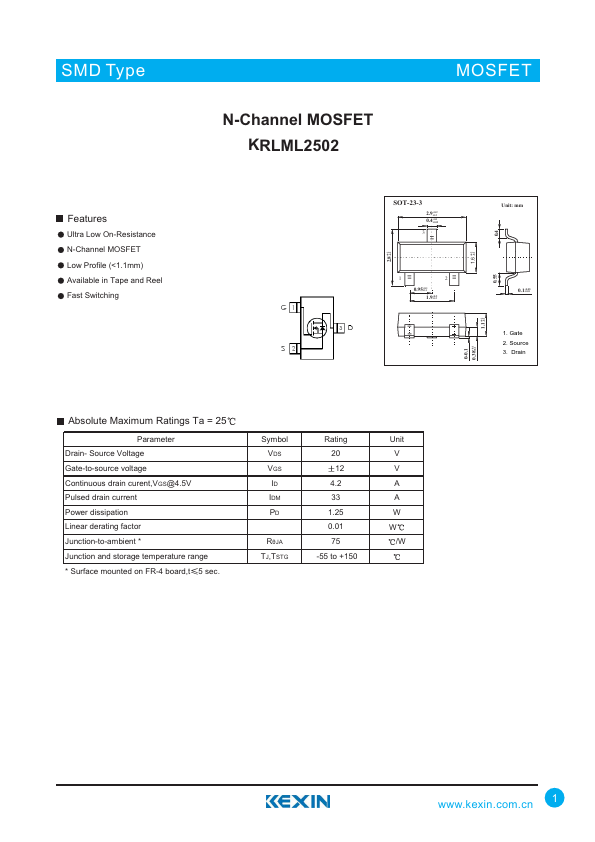

Features Ultra Low On-Resistance N-Channel MOSFET Low Profile (<1.1mm) Available in Tape and Reel Fast Switching N-Channel MOSFET KRLML2502 MOSFIECT +0.2 2.8 -0.2 SOT-23-3 2.9+0.2 -0.2 0.4+0.1 -0.05 0.95+0.1 -0.1 1.9+0.2 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 Unit: mm 0.1+0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Drain- Source Voltage Gate-to-source voltage Continuous drain curent,VGS@4.5V Pulsed drain current Power dissipation Linear derating factor Junction-to-ambient - Junction and storage temperature range - Surface mounted on FR-4 board,t 5 sec. Symbol VDS VGS ID IDM PD RèJA TJ,TSTG Rating 20 12 4.2 33 1.25 0.01 75 -55 to +150 Unit V V A A W W /W .kexin..cn 1 SMD Type MOSFIECT Electrical Characteristics Ta = 25 Parameter Drain-source Breakdown voltage Static drain-source on-state resistance - Gate threshold voltage Forward Transconductance Gate-source leakage current Gate-source forward leadage Gate-source reverse leadage Input capacitance Output capacitance Reverse transfer capacitance Total Gate Charge Gate-Source Charge Gate-Drain Charge Turn-on delay time Rise time Turn-off delay time Fall time Reverse recovery...
