SMD Type
Transistors

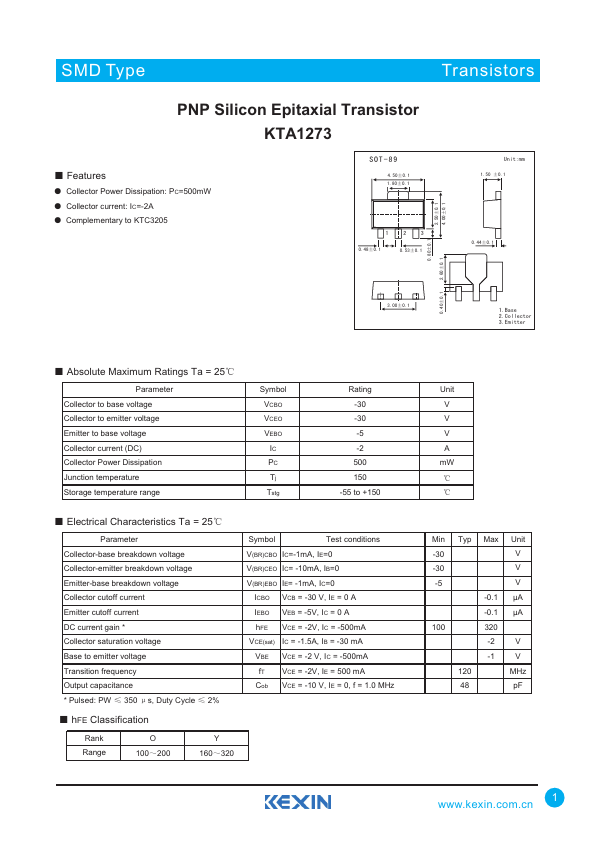

PNP Silicon Epitaxial Transistor KTA1273
- Features
- Collector Power Dissipation: PC=500mW
- Collector current: IC=-2A
- plementary to KTC3205
SOT-89
4.50±0.1 1.80±0.1
0.48±0.1
0.53±0.1
2.50±0.1 4.00±0.1
Unit:mm 1.50 ±0.1
0.44±0.1
0.80±0.1 2.60±0.1
0.40±0.1
3.00±0.1
1.Base 2.Collector 3.Emitter
-...
