KX10N60F - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 600V.
  • ID = 10 A (VGS = 10V).
  • RDS(ON) ＜ 730mΩ (VGS = 10V).
  • Qg(typ. )= 29.5nC N-Channel MOSFET KX10N60F TO-220F ±0.20 3.18±0.20 φ ±0.20 2.54 ±0.20 6.68 ±0.20 15.87 ±0.20 3.30 ±0.20 12.42 ±0.20 1 1.47max 23 9.75 ±0.20 D 0.50 ±0.20 2.54typ 2.54typ 0.80 ±0.20 Unit: mm 0.70 ±0.20 2.76 ±0.20 G S.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Tc=25℃ Tc=70℃ Pulsed Drain Current (.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KX1002 Synchronous Buck DC/DC Converter KEXINWEI
KX105 GaN HEMT Transistor KCB
KX1130 Ignition Controller Keterex
KX124-1051 Tri-axis Digital Accelerometer Kionix
KX126-1063 Tri-axis Digital Accelerometer Kionix

Other Datasheets by Kexin Semiconductor

Part Number Description
KX12N65F N-Channel MOSFET
KX1N60DS N-Channel Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

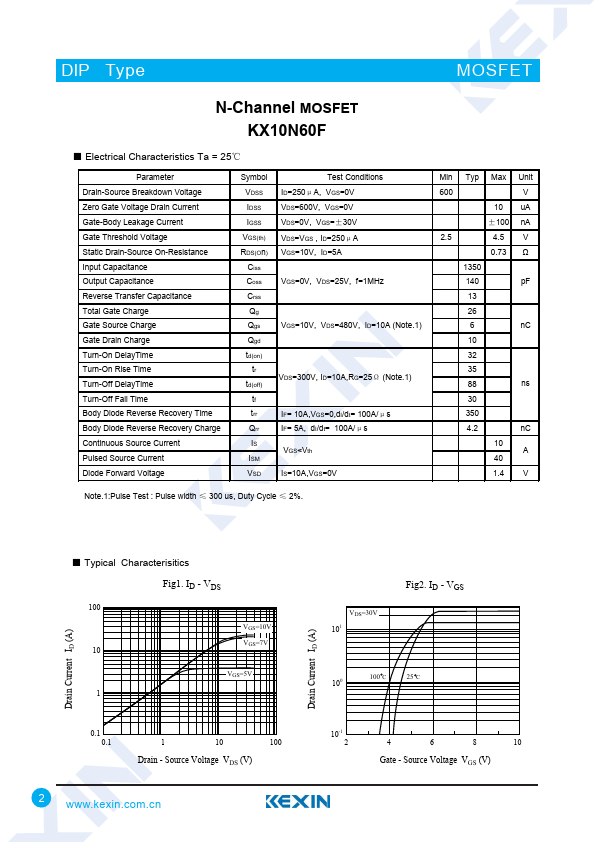

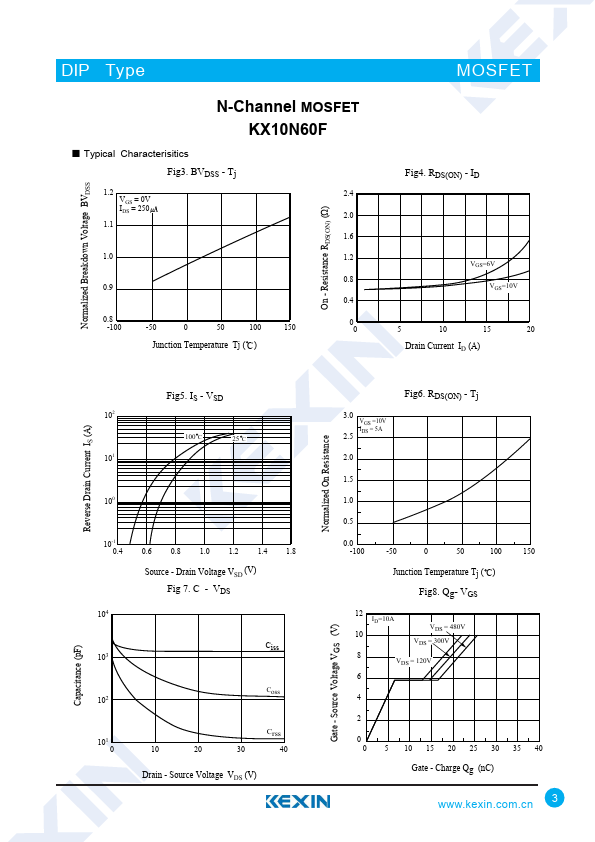

DIP Type MOSFET ■ Features ● VDS (V) = 600V ● ID = 10 A (VGS = 10V) ● RDS(ON) ＜ 730mΩ (VGS = 10V) ● Qg(typ.)= 29.5nC N-Channel MOSFET KX10N60F TO-220F ±0.20 3.18±0.20 φ ±0.20 2.54 ±0.20 6.68 ±0.20 15.87 ±0.20 3.30 ±0.20 12.42 ±0.20 1 1.47max 23 9.75 ±0.20 D 0.50 ±0.20 2.54typ 2.54typ 0.80 ±0.20 Unit: mm 0.70 ±0.20 2.76 ±0.20 G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Tc=25℃ Tc=70℃ Pulsed Drain Current (Note.1) Power Dissipation Repetitive Avalanche Energy Tc=25℃ Derate above 25℃ (Note.2) Single Pulsed Avalanche Energy (Note.1) Peak Diode Recovery dv/dt (Note.3) Thermal Resistance.Junction- to-Ambient Thermal Resistance.
