KX12N65F - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 650V.
  • ID = 12 A (VGS = 10V).
  • RDS(ON) ＜ 850mΩ (VGS = 10V).
  • High ruggedness D G S TO-220F 10.16 0.20 (7.00) ø3.18 0.10 Unit:mm 2.54 0.20 (0.70) 3.30 0.10 6.68 0.20 15.87 0.20 15.80 0.20 9.75 0.30 (1.00x45 ) 12 MAX1.47 0.80 0.10 #1 0.35 0.10 2.54TYP [2.54 0.20] 3 (30 ) 2.54TYP [2.54 0.20] 9.40 0.20 4.70 0.20 0.50 +0.10.
  • 0.05 2.76 0.20 1. Gate 2. Drain 3. Source.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-So.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KX124-1051 Tri-axis Digital Accelerometer Kionix
KX126-1063 Tri-axis Digital Accelerometer Kionix
KX1002 Synchronous Buck DC/DC Converter KEXINWEI
KX105 GaN HEMT Transistor KCB
KX1130 Ignition Controller Keterex

Other Datasheets by Kexin Semiconductor

Part Number Description
KX10N60F N-Channel MOSFET
KX1N60DS N-Channel Power MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

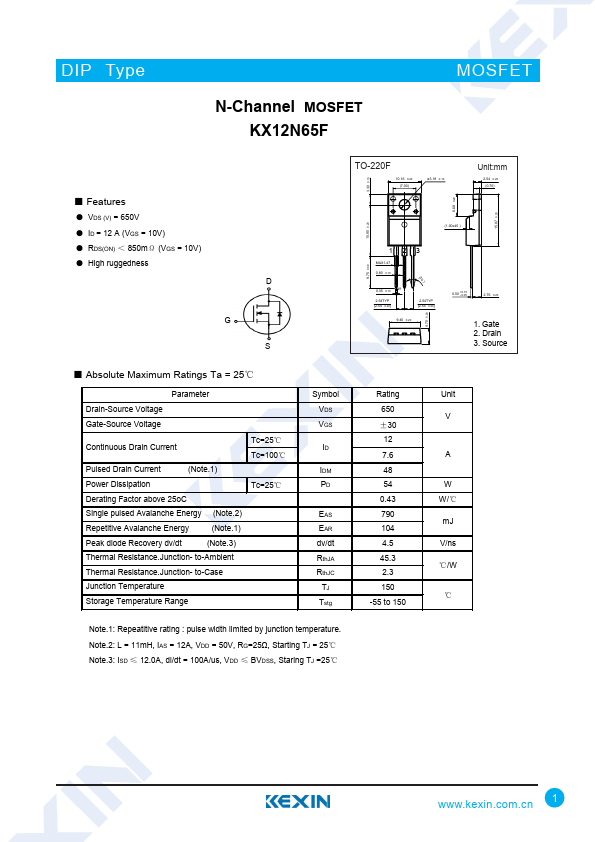

DIP Type MOSFET N-Channel MOSFET KX12N65F ■ Features ● VDS (V) = 650V ● ID = 12 A (VGS = 10V) ● RDS(ON) ＜ 850mΩ (VGS = 10V) ● High ruggedness D G S TO-220F 10.16 0.20 (7.00) ø3.18 0.10 Unit:mm 2.54 0.20 (0.70) 3.30 0.10 6.68 0.20 15.87 0.20 15.80 0.20 9.75 0.30 (1.00x45 ) 12 MAX1.47 0.80 0.10 #1 0.35 0.10 2.54TYP [2.54 0.20] 3 (30 ) 2.54TYP [2.54 0.20] 9.40 0.20 4.70 0.20 0.50 +0.10 –0.05 2.76 0.20 1. Gate 2. Drain 3. Source ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Tc=25℃ Tc=100℃ Power Dissipation Derating Factor above 25oC Tc=25℃ Single pulsed Avalanche Energy (Note.2) Repetitive Avalanche Energy (Note.1) Peak diode Recovery dv/dt (Note.
