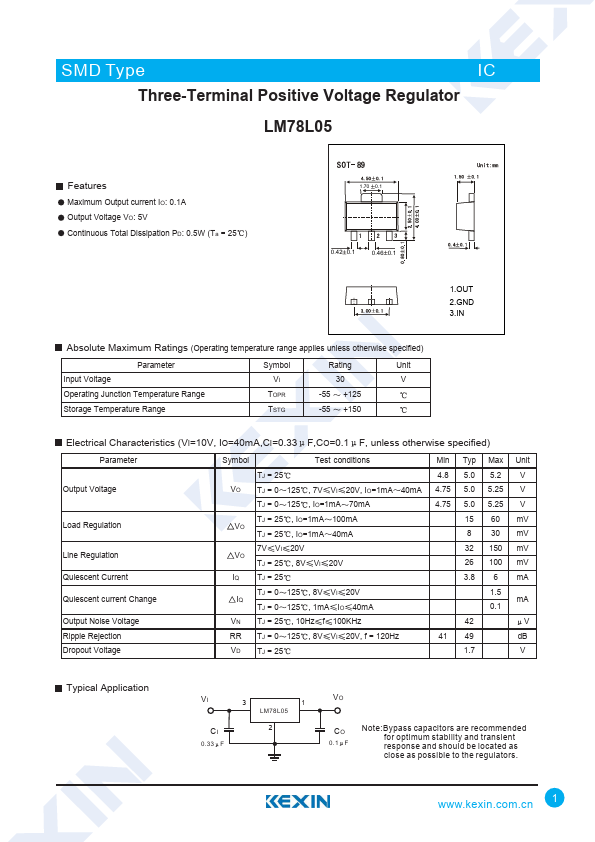

LM78L05
LM78L05 is Three Terminal Positive Voltage Regulator manufactured by Kexin Semiconductor.
Features
Maximum Output current IO: 0.1A Output Voltage VO: 5V Continuous Total Dissipation PD: 0.5W (Ta = 25 )
1.70 0.1
0.42 0.1
0.46 0.1
1.OUT 2.GND 3.IN
Absolute Maximum Ratings (Operating temperature range applies unless otherwise specified)
Parameter Input Voltage Operating Junction Temperature Range Storage Temperature Range
Symbol
Rating
Unit
TOPR
-55 +125
TSTG
-55 +150
Electrical Characteristics (VI=10V, IO=40m A,CI=0.33 F,CO=0.1 F, unless otherwise specified)
Parameter
Output Voltage
Load Regulation
Line Regulation Quiescent Current Quiescent current Change Output Noise Voltage Ripple Rejection Dropout Voltage
Symbol
Test conditions
Min Typ Max Unit
TJ = 25
4.8 5.0 5.2 V
VO TJ = 0 125 , 7V VI 20V, IO=1m A 40m A 4.75 5.0 5.25 V
TJ = 0 125 , IO=1m A 70m A
4.75 5.0 5.25 V
TJ = 25 , IO=1m A 100m A VO
TJ = 25 , IO=1m A 40m A
15 60 m V 8 30 m V
7V VI 20V VO
TJ = 25 , 8V VI 20V
32 150 m V 26 100 m V
IQ TJ = 25
3.8 6 m A
TJ = 0 125 , 8V VI 20V IQ
TJ = 0 125 , 1m A IO 40m A
1.5 m...
Representative LM78L05 image (package may vary by manufacturer)
