MAC08BT1 - Sensitive Gate Triacs

Key Features

  • Sensitive Gate Trigger Current in Four Trigger Modes Blocking Voltage to 600 Volts Glass Passivated Surface for Reliability and Uniformity Surface Mount Package SOT-223 6.50+0.2 -0.2 Unit: mm 3.50+0.2 -0.2 3.00+0.1 -0.1 4 1 2 3 2.9 4.6 0.90+0.2 -0.2 7.00+0.3 -0.3 0.70+0.1 -0.1 1 Main Terminal 1 2 Main Terminal 2 3 Gate 4 Main Terminal 2 Absolute Maximum Ratings Ta = 25 Parameter Peak Repetitive Forward and Reverse Blocking Voltage.
  • MAC08BT1 MAC08MT1 Forward Current RMS Peak Forwa.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MAC08BT1 Sensitive Gate Triacs onsemi
MAC08BT1 Triac Motorola
MAC08BT1 Thyristors Littelfuse
MAC08A MAC08A Tesla
MAC08DT1 Triac Motorola

Other Datasheets by Kexin Semiconductor

Part Number Description
MAC08MT1 Sensitive Gate Triacs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

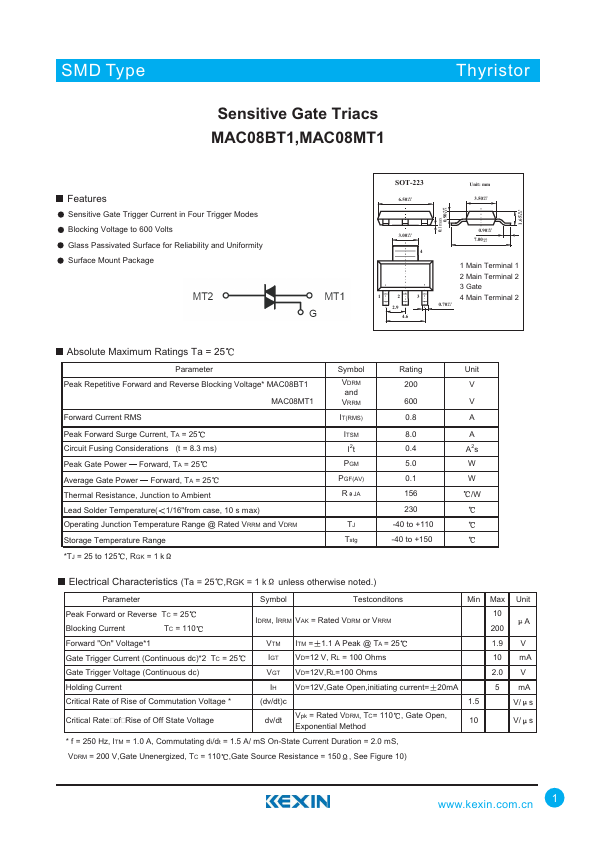

SMD Type Sensitive Gate Triacs MAC08BT1,MAC08MT1 Thyristor 0.1max +0.05 0.90 -0.05 +0.15 1.65 -0.15 Features Sensitive Gate Trigger Current in Four Trigger Modes Blocking Voltage to 600 Volts Glass Passivated Surface for Reliability and Uniformity Surface Mount Package SOT-223 6.50+0.2 -0.2 Unit: mm 3.50+0.2 -0.2 3.00+0.1 -0.1 4 1 2 3 2.9 4.6 0.90+0.2 -0.2 7.00+0.3 -0.3 0.70+0.1 -0.1 1 Main Terminal 1 2 Main Terminal 2 3 Gate 4 Main Terminal 2 Absolute Maximum Ratings Ta = 25 Parameter Peak Repetitive Forward and Reverse Blocking Voltage* MAC08BT1 MAC08MT1 Forward Current RMS Peak Forward Surge Current, TA = 25 Circuit Fusing Considerations (t = 8.
