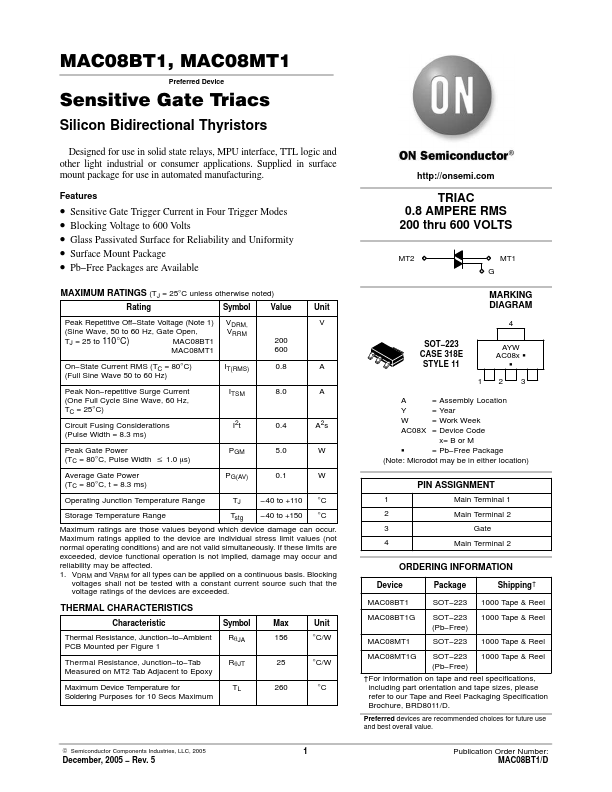

MAC08BT1, MAC08MT1
Preferred Device
Sensitive Gate Triacs
Silicon Bidirectional Thyristors
Designed for use in solid state relays, MPU interface, TTL logic and other light industrial or consumer applications. Supplied in surface mount package for use in automated manufacturing.
Features
• Sensitive Gate Trigger Current in Four Trigger Modes • Blocking Voltage to 600 Volts • Glass Passivated Surface for Reliability and Uniformity • Surface Mount Package • Pb−Free Packages are Available
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
Rating
Symbol Value
Unit
Peak Repetitive Off−State Voltage (Note 1) VDRM,
V
(Sine Wave, 50 to 60 Hz, Gate Open,
VRRM
TJ = 25 to 110°C)
MAC08BT1
200
MAC08MT1
600
On−State Current RMS (TC = 80°C)
IT(RMS)
0.
