MBD110DWT1 Datasheet Dual Schottky Barrier Diodes

Manufacturer: Kexin Semiconductor

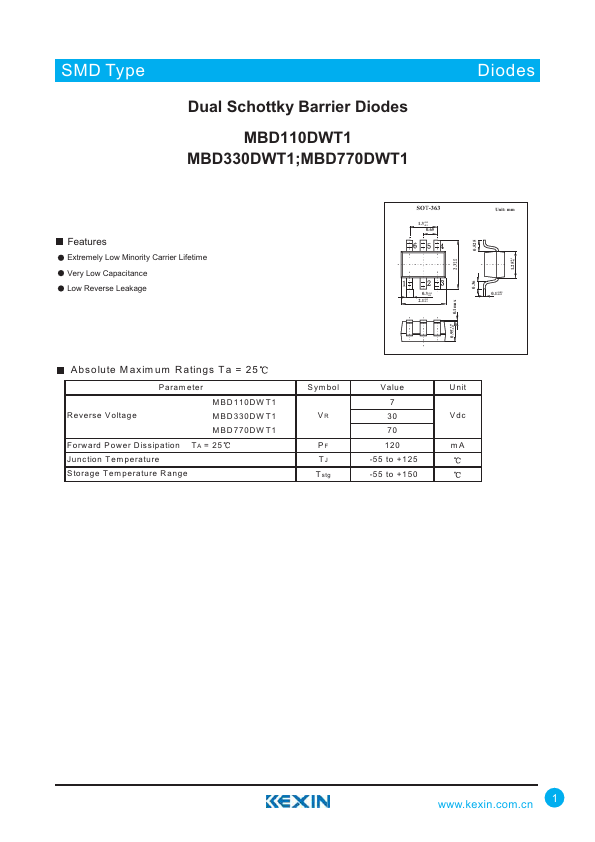

Overview: SMD Type Dual Schottky Barrier Diodes MBD110DWT1 MBD330DWT1;MBD770DWT1.

Key Features

  • Extremely Low Minority Carrier Lifetime Very Low Capacitance Low Reverse Leakage SOT-363 1.3+0.1 -0.1 0.65 Unit: mm 0.525 +0.15 2.3 -0.15 0.36 0.3+0.1 -0.1 2.1+0.1 -0.1 0.1+0.05 -0.02 +0.1 1.25 -0.1 0.1max +0.05 0.95 -0.05 Absolute M axim um R atings Ta = 25 Param eter MBD110DW T1 Reverse Voltage MBD330DW T1 MBD770DW T1 Forward Power Dissipation TA = 25 Junction Tem perature Storage Tem perature Range Sym bol VR PF TJ T stg V a lu e 7 30 70 120 -55 to +125 -55 to +150 U n i.
