Part MBR0540
Description Schottky Rectifier
Manufacturer Kexin Semiconductor
Size 93.37 KB
MBR0540 Datasheet (PDF) Download
Kexin Semiconductor
MBR0540

Overview

  • High Current Capability
  • Extremely Low Thermal Resistance
  • For Surface Mount Application
  • Higher Temp Soldering: 250 oC for 10 Seconds At Terminals
  • Low Forward Voltage SOD-123
  • 7 +0.1 - 0.1
  • 7 +0.1 - 0.1 0.35 +0.1 0.55 - 0.1 +0.1 1.6 - 0.1 Diodes Unit:mm
  • 1 +0.05 - 0.05 0.1max +0.05 0.1 -0.02

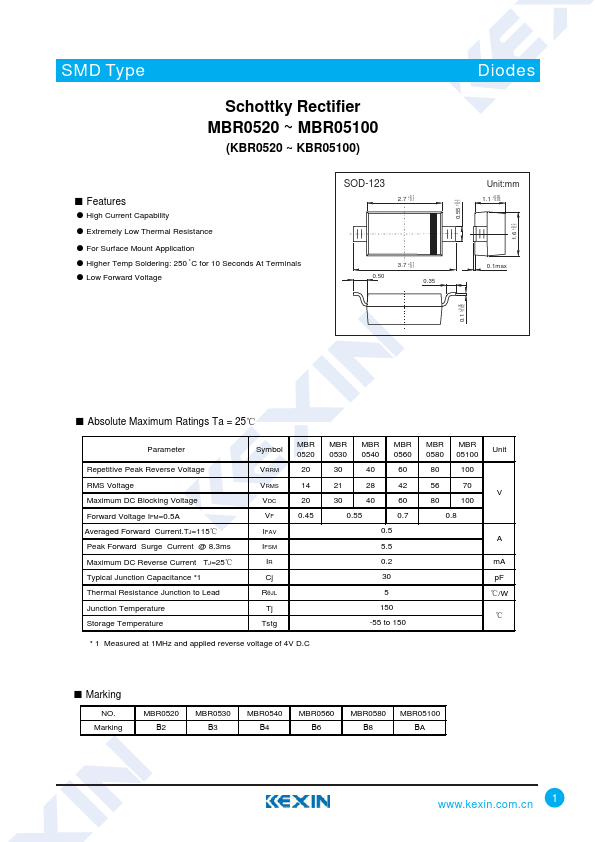

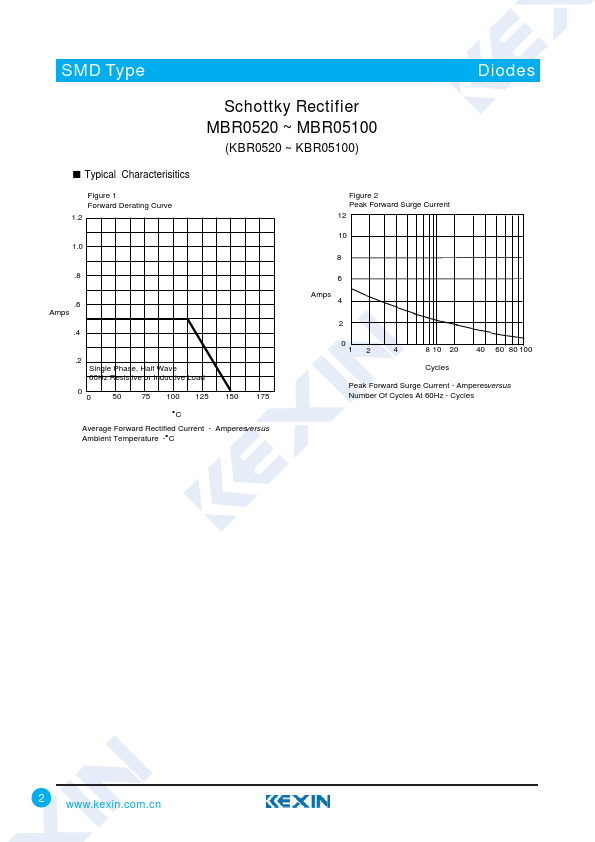

MBR0540 datasheet preview
