Kexin Electronics MBRS15H45CT
Schottky Diodes
| Part No. | MBRS15H45CT |
|---|---|
| Datasheet | MBRS15H45CT Download |
| Manufacturer | Kexin Electronics |
| Description | Schottky Diodes |
| Buy | Stock & Price |

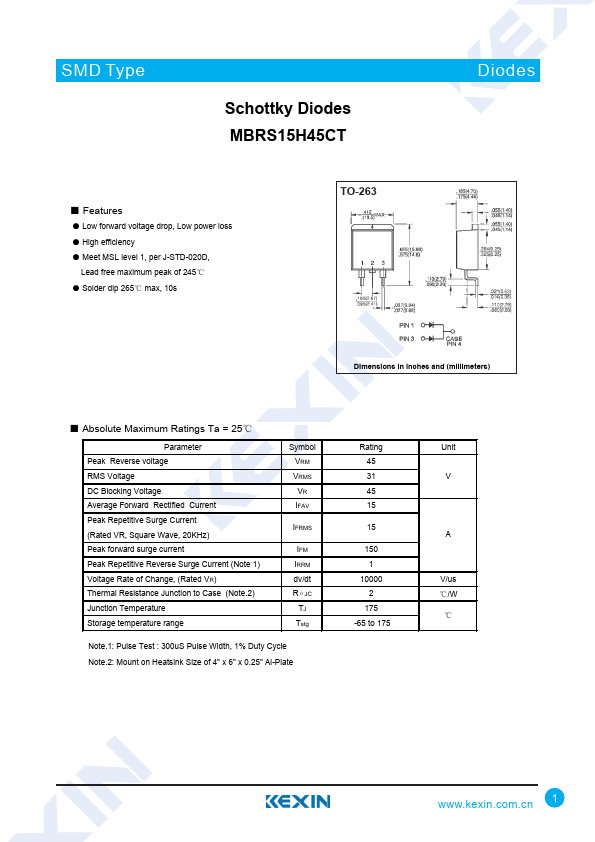

FEATURES
● Low forward voltage drop, Low power loss● High efficiency
● Meet MSL level 1, per J-STD-020D, Lead free maximum peak of 245℃
● Solder dip 265℃ max, 10s TO-263 Diodes Dimensions in inches and (millimeters)
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Peak Reverse voltage RMS Voltage DC Blocking Voltage Average Forward Rectified Current Peak Repetitive Surge Current (Rated VR, Square Wave, 20KHz) Peak forward surge current Peak Repetitive Reverse Surge Current (Note 1) Voltage Rate of Change, (Rated VR) Thermal Resistance Junction to Case (Note.2) Junction Temperature Storage temperature range Symbol VRM VRMS VR IFAV IFRMS IFM IRRM dv/dt RθJC TJ Tstg Note.1: Pulse Test : 300uS Pulse Width, 1% Duty Cycle Note.2: Mount on Heatsink Size of 4" x 6" x 0.25" Al-Plate Rating 45 31 45 15 15 150 1 10000 2 175 -65 to 175 Unit V A V/us ℃/W ℃ 1 SMD Type Diodes Schottky Diodes MBRS15H45CT●

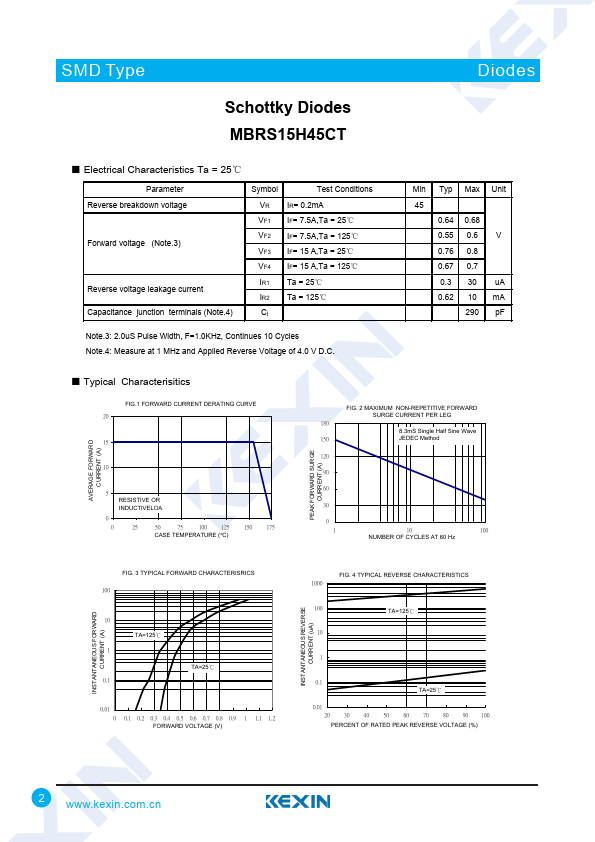

ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Reverse breakdown voltage Forward voltage (Note.3) R...
