MBRS15H45CT - Dual Common Cathode Schottky Rectifier

Datasheet Summary

Description

FIG.

FIG.

Features

  • - Low power loss, high efficiency - Ideal for automated placement - Guardring for overvoltage protection - High surge current capability - Moisture sensitivity level : level 1, per J-STD-020 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition.

📥 Download Datasheet

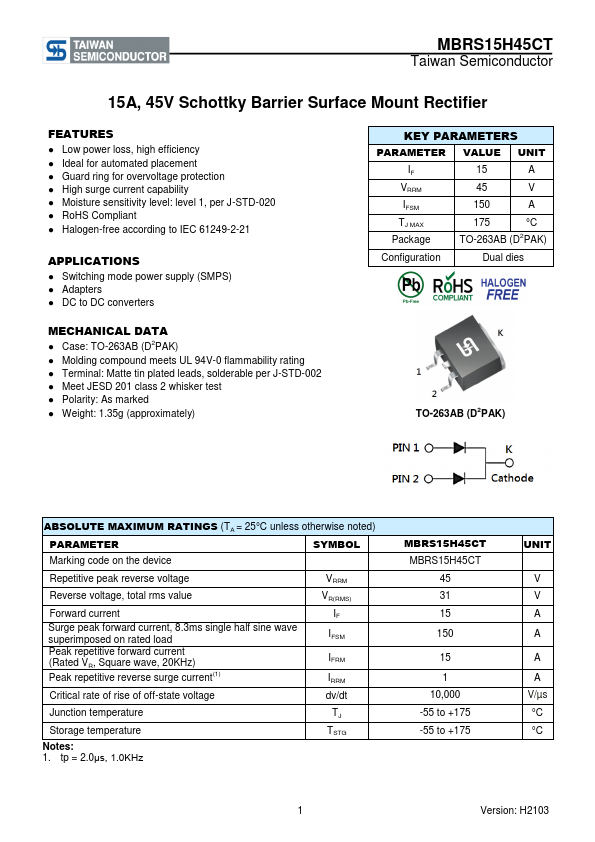

Datasheet preview – MBRS15H45CT

Datasheet Details

Part number MBRS15H45CT
Manufacturer Taiwan Semiconductor
File Size 201.05 KB
Description Dual Common Cathode Schottky Rectifier
Datasheet download datasheet MBRS15H45CT Datasheet

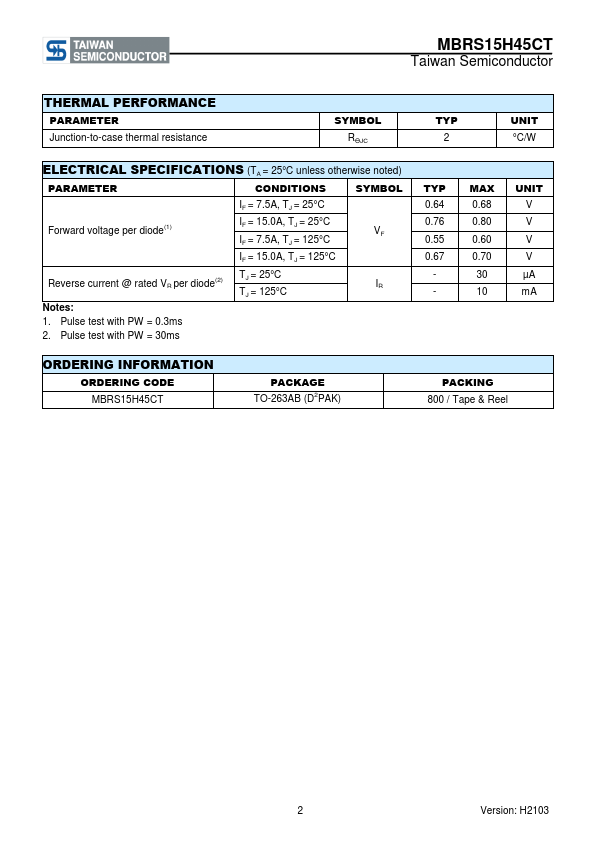

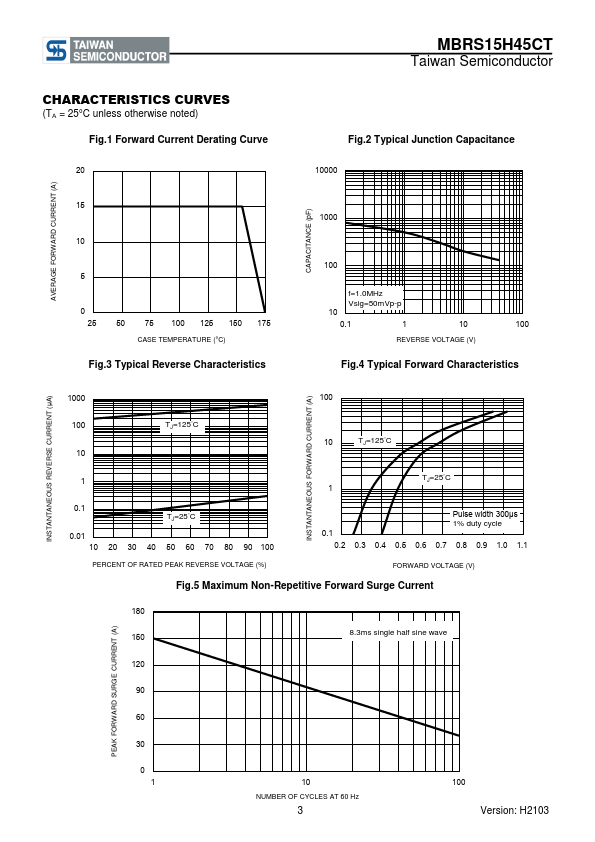

Additional preview pages of the MBRS15H45CT datasheet.

📁 Similar Datasheet

  • MBRS150 - SURFACE MOUNT SCHOTTKY BARRIER DIODES (SunMate)
  • MBRS150G - 1.0A Surface Mount Schottky Barrier Rectifiers (American First Semiconductor)
  • MBRS1540 - Surface Mount Schottky Power Rectifier (Motorola)
  • MBRS1540T3 - Surface Mount Schottky Power Rectifier (Motorola)
  • MBRS10100CT - Dual Common Cathode Schottky Rectifiers (JGD)
  • MBRS10150CT - Dual Common Cathode Schottky Rectifiers (JGD)
  • MBRS10150CT - Schottky Barrier Rectifier (INCHANGE)
  • MBRS1035 - Schottky Barrier Rectifier (INCHANGE)
  • MBRS1035CT - Dual Common Cathode Schottky Rectifiers (JGD)
  • MBRS1045CT - Dual Common Cathode Schottky Rectifiers (JGD)
Other Datasheets by Taiwan Semiconductor

Full PDF Text Transcription

Click to expand full text
MBRS15H45CT Taiwan Semiconductor CREAT BY ART Dual Common Cathode Schottky Rectifier FEATURES - Low power loss, high efficiency - Ideal for automated placement - Guardring for overvoltage protection - High surge current capability - Moisture sensitivity level : level 1, per J-STD-020 - Compliant to RoHS Directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition MECHANICAL DATA Case: TO-263AB (D2PAK) Molding compound, UL flammability classification rating 94V-0 Base P/N with suffix "G" on packing code - halogen-free Base P/N with prefix "H" on packing code - AEC-Q101 qualified Terminal: Matte tin plated leads, solderable per JESD22-B102 Meet JESD 201 class 1A whisker test, with prefix "H" on packing code meet JESD 201 class 2 whisker tes
