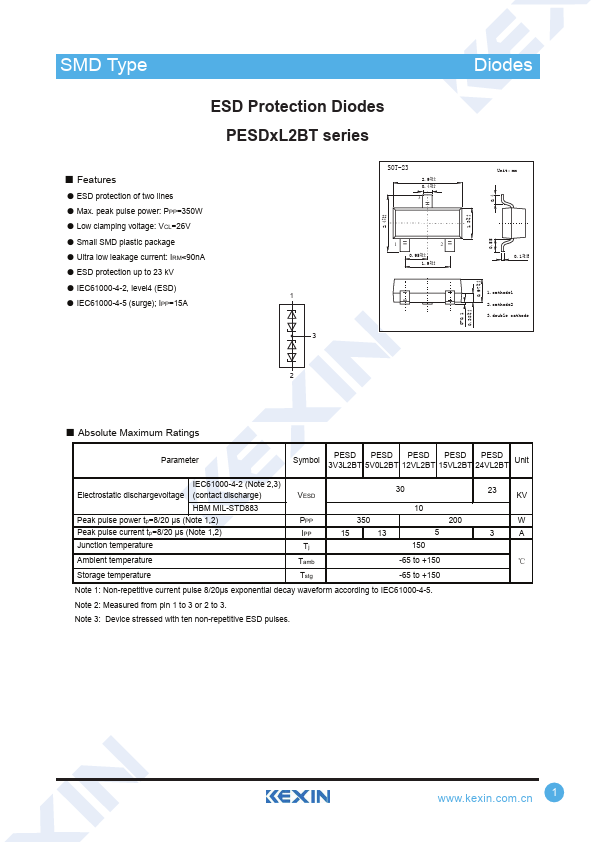

Kexin Electronics PESD5V0L2BT
ESD Protection Diodes
| Part No. | PESD5V0L2BT |
|---|---|
| Datasheet | PESD5V0L2BT Download |
| Manufacturer | Kexin Electronics |
| Description | ESD Protection Diodes |
| Buy | Stock & Price |
FEATURES
● ESD protection of two lines● Max. peak pulse power: PPP=350W
● Low clamping voltage: VCL=26V
● Small SMD plastic package
● Ultra low leakage current: IRM<90nA
● ESD protection up to 23 kV
● IEC61000-4-2, level4 (ESD)
● IEC61000-4-5 (surge); IPP=15A 1 3 +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1.cathode1 2.cathode2 3.double cathode 0-0.1 +0.1 0.38 -0.1 2
●
ABSOLUTE MAXIMUM RATINGS
Parameter Symbol PESD PESD PESD PESD PESD 3V3L2BT 5V0L2BT 12VL2BT 15VL2BT 24VL2BT Unit IEC61000-4-2 (Note 2,3) Electrostatic dischargevoltage (contact discharge) HBM MIL-STD883 Peak pulse power tp=8/20 µs (Note 1,2) Peak pulse current tp=8/20 µs (Note 1,2) Junction temperature VESD PPP IPP Tj 30 350 15 13 10 200 5 150 Ambient temperature Tamb -65 to +150 Storage temperature Tstg -65 to +150 Note 1: Non-repetitive current pulse 8/20µs exponential decay waveform according to IEC61000-4-5. Note 2: Measured from pin 1 to 3 or 2 to 3.
