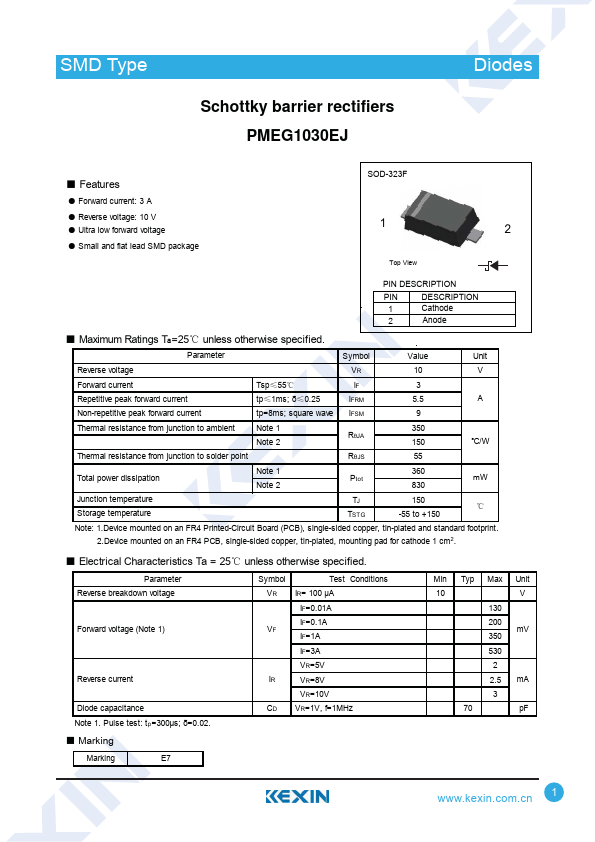

FEATURES
ƽ Forward current: 3 A ƽ Reverse voltage: 10 V ƽ Ultra low forward voltage ƽ Small and flat lead SMD package SOD-323F 1 2 Top View PIN DESCRIPTION
PIN DESCRIPTION
1 Cathode 2 Anode Ƶ MAXIMUM RATINGS
Ta=25ć unless otherwise specified. Parameter Symbol Value Unit Reverse voltage VR 10 V Forward current Tspİ55ć IF 3 Repetitive peak forward current tpİ1ms; įİ0.25 IFRM 5.5 A Non-repetitive peak forward current tp=8ms; square wave IFSM 9 Thermal resistance from junction to ambient Note 1 Note 2 Thermal resistance from junction to solder point RɽJA 350 150 ഒ : RșJS 55 Total power dissipation Note 1 Note 2 360 Ptot P: 830 Junction temperature Storage temperature TJ 150 ć TST G -55 to +150 Note: 1.Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint. 2.Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm2. Ƶ ELECTRICAL CHARACTERISTICS
Ta = 25ć unless otherwise specified. Parameter Reverse breakdown voltage Forward voltage (Note 1) Reverse current Diode capacitance Note 1.
