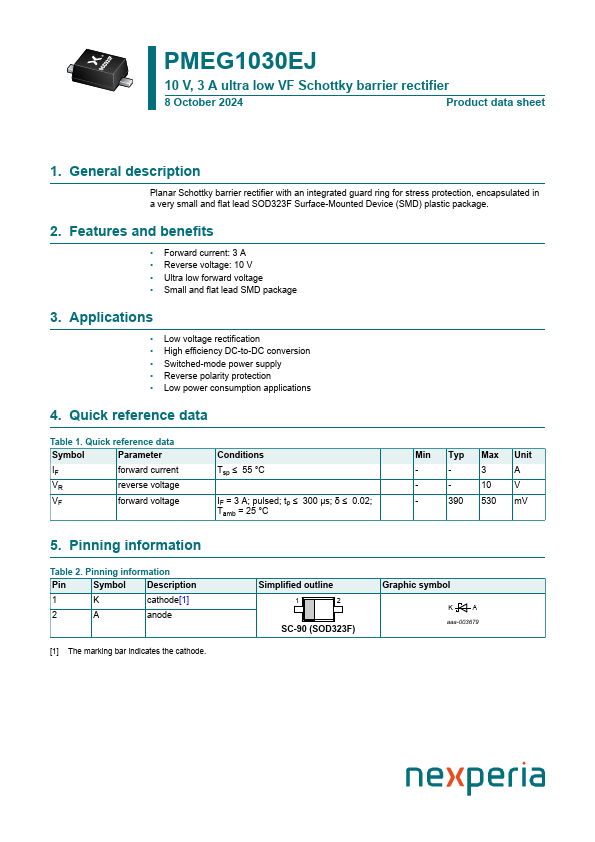

PMEG1030EJ
PMEG1030EJ is 10V 3A ultra low VF Schottky barrier rectifier manufactured by Nexperia.
description
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a very small and flat lead SOD323F Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- Forward current: 3 A
- Reverse voltage: 10 V
- Ultra low forward voltage
- Small and flat lead SMD package
3. Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switched-mode power supply
- Reverse polarity protection
- Low power consumption applications
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
IF forward current
VR reverse voltage
VF forward voltage
Conditions Tsp ≤ 55 °C
IF = 3 A; pulsed; tp ≤ 300 µs; δ ≤ 0.02; Tamb = 25 °C
Min Typ Max Unit
- -
- -
- 390 530 m V
5. Pinning information
Table 2. Pinning information
Pin
Symbol Description
K cathode[1]
A anode
[1] The marking bar indicates the cathode.
