PMEG1030EJ - 10V 3A ULTRA LOW V-f MEGA SCHOTTKY BARRIER RECTIFIERS

Download the PMEG1030EJ datasheet PDF. This datasheet also covers the PMEG1030EH variant, as both devices belong to the same 10v 3a ultra low v-f mega schottky barrier rectifiers family and are provided as variant models within a single manufacturer datasheet.

General Description

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection encapsulated in small SMD plastic packages.

Key Features

  • s s s s Forward current: 3 A Reverse voltage: 10 V Ultra low forward voltage Small and flat lead SMD package 1.3.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PMEG1030EH_NXPSemiconductors.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
PMEG1030EJ MEGA Schottky barrier rectifiers nexperia
PMEG1030EH MEGA Schottky barrier rectifiers nexperia
PMEG10010ELR 1A low leakage current Schottky barrier rectifier NXP
PMEG10010ELR 1A low leakage current Schottky barrier rectifier nexperia
PMEG10020AELP 2A low leakage current Schottky barrier rectifier NXP

Other Datasheets by NXP Semiconductors

Part Number Description
PMEG1030EH 10V 3A ULTRA LOW V-f MEGA SCHOTTKY BARRIER RECTIFIERS
PMEG10020AELR low leakage current Schottky barrier rectifier
PMEG1020EA Ultra low VFMEGA Schottky barrier diode
PMEG1020EH 10V 2A ultra low VF MEGA Schottky barrier rectifiers
PMEG1020EJ 10V 2A ultra low VF MEGA Schottky barrier rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

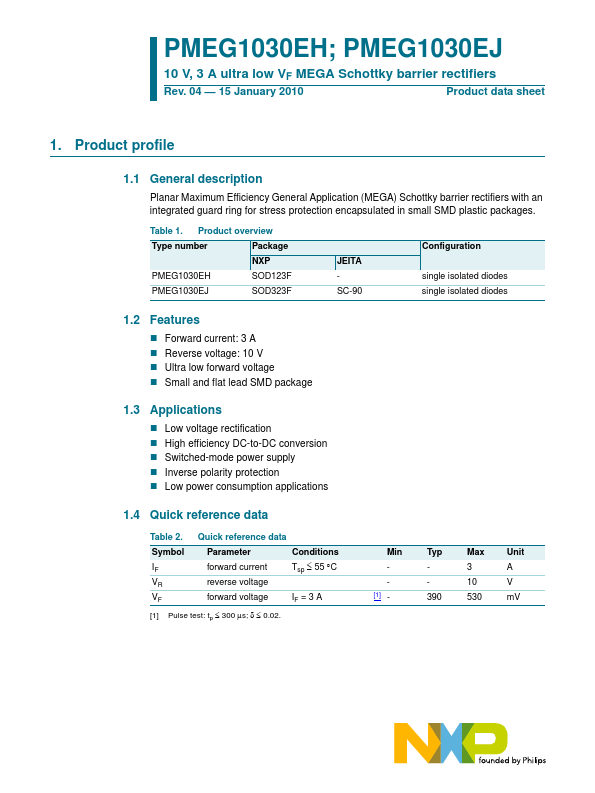

PMEG1030EH; PMEG1030EJ 10 V, 3 A ultra low VF MEGA Schottky barrier rectifiers Rev. 03 — 2 June 2005 www.DataSheet4U.com Product data sheet 1. Product profile 1.1 General description Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection encapsulated in small SMD plastic packages. Table 1: Product overview Package Philips PMEG1030EH PMEG1030EJ SOD123F SOD323F JEITA SC-90 single isolated diodes single isolated diodes Configuration Type number 1.2 Features s s s s Forward current: 3 A Reverse voltage: 10 V Ultra low forward voltage Small and flat lead SMD package 1.
