Kexin Electronics PMEG2005CT
Schottky Diode
| Part No. | PMEG2005CT |
|---|---|
| Datasheet | PMEG2005CT Download |
| Manufacturer | Kexin Electronics |
| Description | Schottky Diode |
| Buy | Stock & Price |
FEATURES

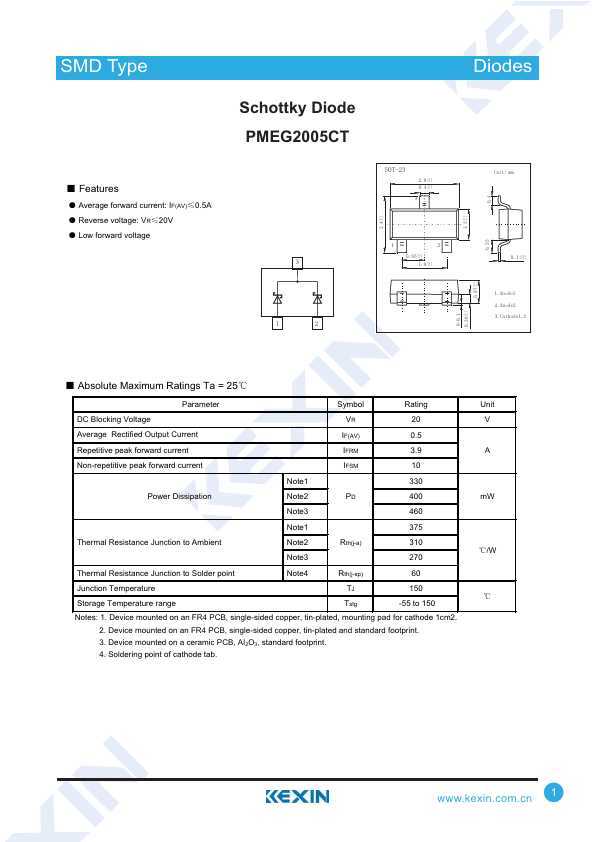

ƽ Average forward current: IF(AV)İ0.5A ƽ Reverse voltage: VRİ20V ƽ Low forward voltage Schottky Diode PMEG2005CT 3 1 2 +0.1 2.4 -0.1 0-0.1 +0.1 0.38 -0.1 TransDisiotodress SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1.Anode1 2.Anode2 3.Cathode1,2 ƵABSOLUTE MAXIMUM RATINGS
Ta = 25ć Parameter Symbol Rating DC Blocking Voltage VR 20 Average Rectified Output Current IF(AV) 0.5 Repetitive peak forward current IFRM 3.9 Non-repetitive peak forward current IFSM 10 Note1 330 Power Dissipation Note2 PD 400 Note3 460 Note1 375 Thermal Resistance Junction to Ambient Note2 Rth(j-a) 310 Note3 270 Thermal Resistance Junction to Solder point Note4 Rth(j-sp) 60 Junction Temperature TJ 150 Storage Temperature range Tstg -55 to 150 Notes: 1. Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1cm2. 2. Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint.
