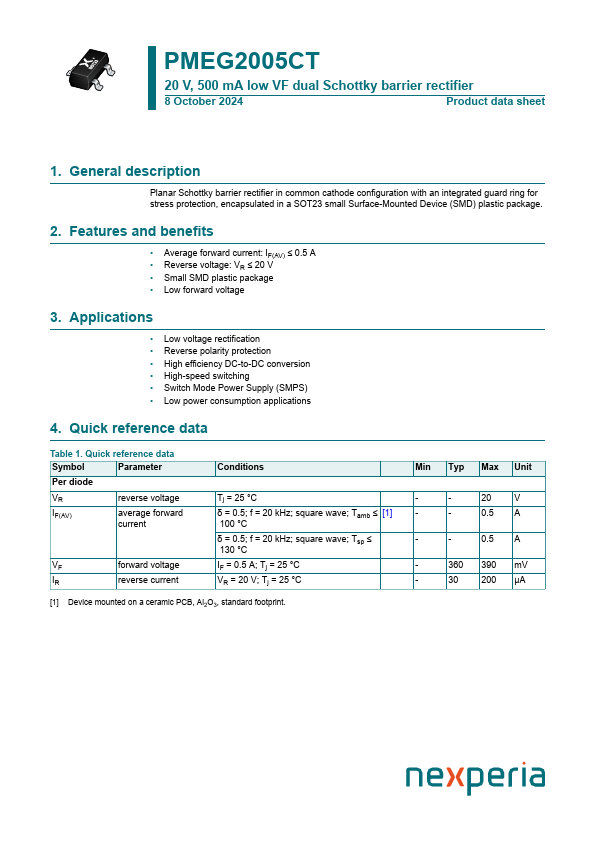

Nexperia PMEG2005CT
20V 500mA low VF dual Schottky barrier rectifier
| Part No. | PMEG2005CT |
|---|---|
| Datasheet | PMEG2005CT Download |
| Manufacturer |  Nexperia |
| Description | 20V 500mA low VF dual Schottky barrier rectifier |
| Buy | Stock & Price |
FEATURES AND BENEFITS
● Average forward current: IF(AV) ≤ 0.5 A● Reverse voltage: VR ≤ 20 V
● Small SMD plastic package
● Low forward voltage 3.
APPLICATIONS
● Low voltage rectification● Reverse polarity protection
● High efficiency DC-to-DC conversion
● High-speed switching
● Switch Mode Power Supply (SMPS)

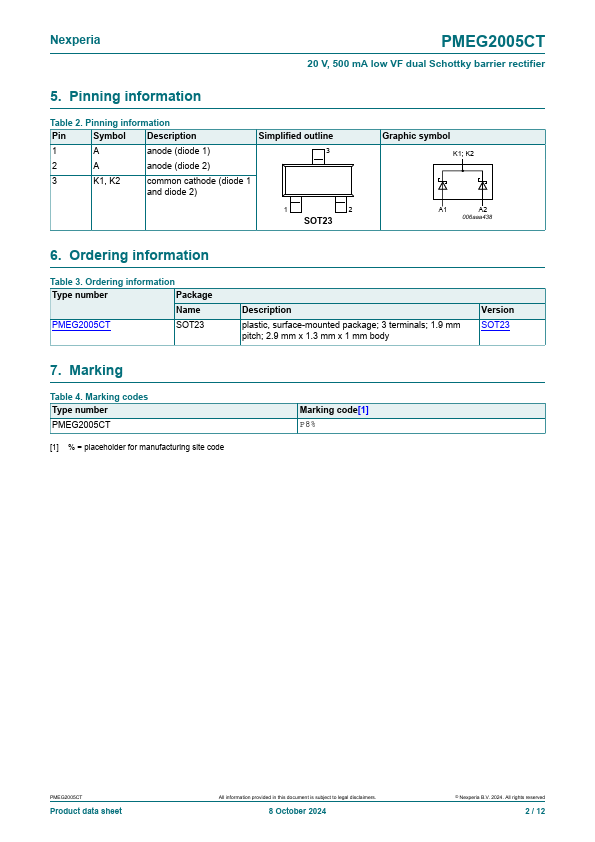

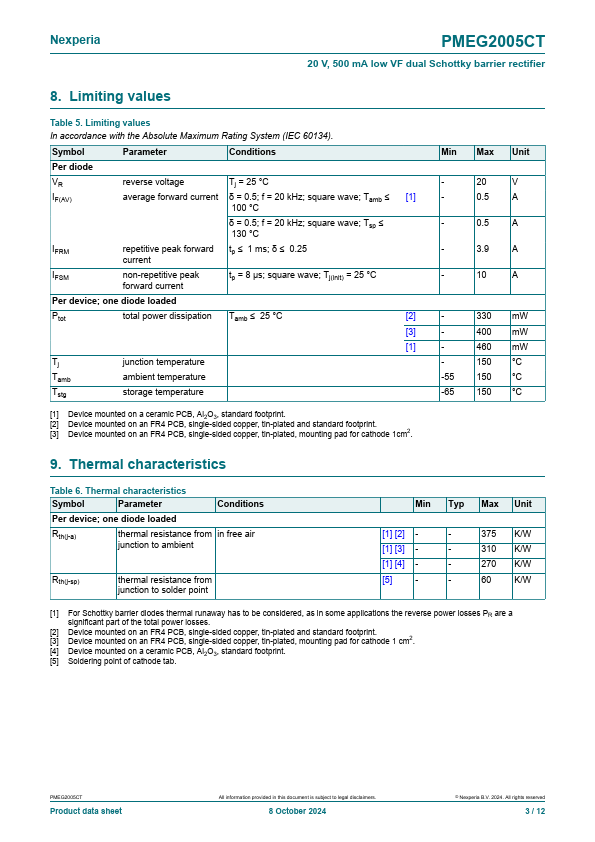

● Low power consumption applications 4. Quick reference data Table 1. Quick reference data Symbol Parameter Per diode VR reverse voltage IF(AV) average forward current VF forward voltage IR reverse current Conditions Tj = 25 °C δ = 0.5; f = 20 kHz; square wave; Tamb ≤ [1] 100 °C δ = 0.5; f = 20 kHz; square wave; Tsp ≤ 130 °C IF = 0.5 A; Tj = 25 °C VR = 20 V; Tj = 25 °C [1] Device mounted on a ceramic PCB, Al2O3, standard footprint. Min Typ Max Unit - - 20 V - - 0.5 A - - 0.5 A - 360 390 mV - 30 200 µA Nexperia PMEG2005CT 20 V, 500 mA low VF dual Schottky barrier rectifier 5. Pinning information Table 2. Pinning information Pin Symbol
DESCRIPTION
Simplified outline 1 A anode (diode 1) 3 2 A anode (diode 2) 3 K1, K2 common cathode (diode 1 and diode 2) 1 2 SOT23 Graphic symbol K1; K2 A1 A2 006aaa438 6.
