Kexin Electronics PSOT24
ESD Protection Diodes
| Part No. | PSOT24 |
|---|---|
| Datasheet | PSOT24 Download |
| Manufacturer | Kexin Electronics |
| Description | ESD Protection Diodes |
| Buy | Stock & Price |
FEATURES

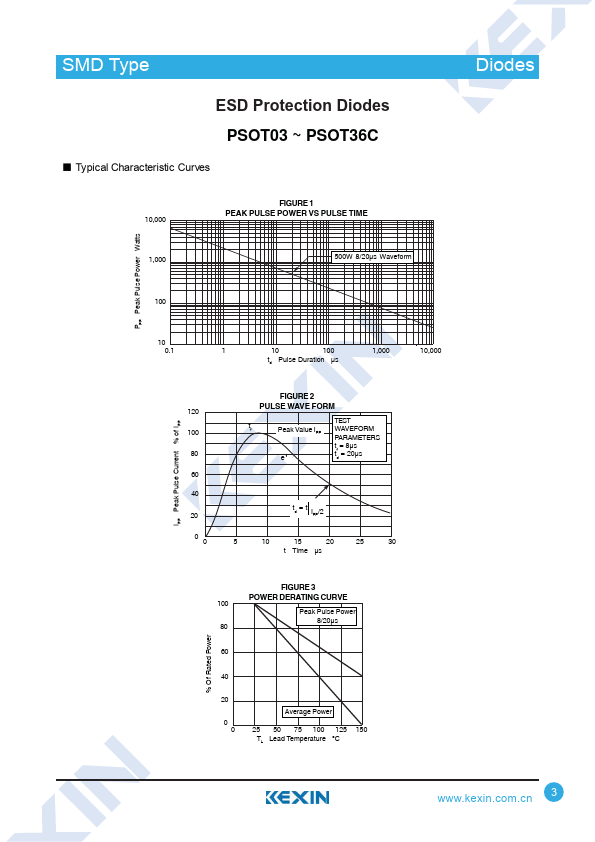

ƽ ESD Protection > 40 kilovolts ƽ 500 Watts Peak Pulse Power per Line (tp = 8/20μs) ƽ Low Clamping Voltage ƽ Available in Multiple Voltage Types Ranging from 3V to 36V ƽ Unidirectional & Bidirectional Configurations +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Diodes Unit : mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 Ƶ IEC Compatibility (EN61000-4) ƽ 61000-4-2 (ESD): Air - 15kV, Contact - 8kV ƽ 61000-4-4 (EFT): 40A - 5/50ns ƽ 61000-4-5 (Surge): 24A, 8/20μs - Level 2(Line-Ground) & Level 3(Line-Line) Unidirectional Bidirectional 0-0.1 +0.1 0.38 -0.1 ƵABSOLUTE MAXIMUM RATINGS
@ 25°C Unless Otherwise Specified Parameter Symbol Value Unit Peak Pulse Power (tp = 8/20μs) - See Figure 1 PPP 500 W Forward Voltage @ 100mA, 300μs - Square Wave (Note 1) VF 1.5 V Operating Temperature Storage Temperature TJ -55 to +150 ć TST G -55 to +150 Note 1: Applies to unidirectional pins only. 1 SMD Type Diodes ESD Protection Diodes PSOT03 ~ PSOT3...
