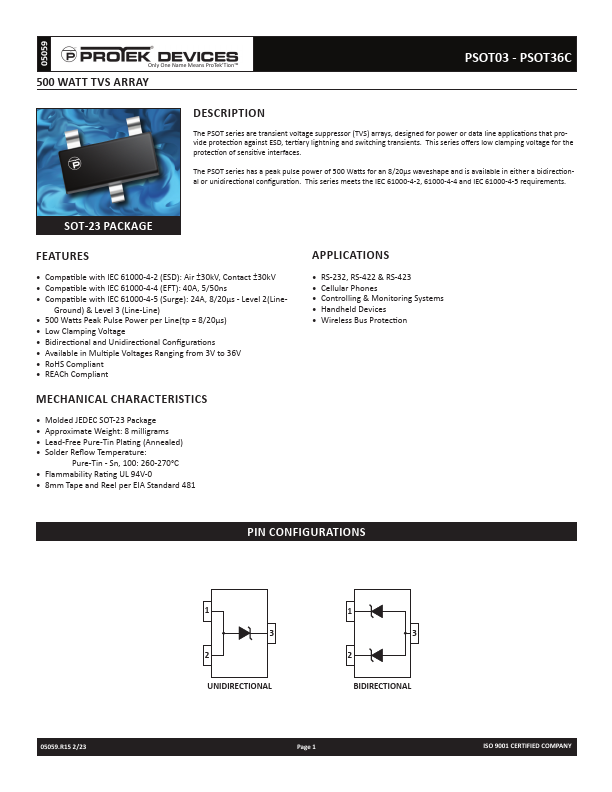

Only One Name Means Pro Tek’Tion™ 500 WATT TVS ARRAY PSOT03 - PSOT36C Description The PSOT series are transient voltage suppressor (TVS) arrays, designed for power or data line applications that provide protection against ESD, tertiary lightning and switching transients. This series offers low clamping voltage for the protection of sensitive interfaces. The PSOT series has a peak pulse power of 500 Watts for an 8/20µs waveshape and is available in either a bidirectional or unidirectional configuration. This series meets the IEC 61000-4-2, 61000-4-4 and IEC 61000-4-5 requirements. sot-23 package Features - patible with IEC 61000-4-2 (ESD): Air ±30k V, Contact ±30k V - patible with IEC 61000-4-4 (EFT): 40A, 5/50ns - patible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(Line- Ground) & Level 3 (Line-Line) - 500 Watts Peak Pulse Power per Line(tp = 8/20µs) - Low Clamping Voltage - Bidirectional and Unidirectional Configurations - Available in Multiple Voltages Ranging from 3V to 36V - Ro HS pliant - REACh pliant mechani Cal characteristics - Molded JEDEC SOT-23 Package - Approximate Weight: 8 milligrams - Lead-Free Pure-Tin Plating (Annealed) - Solder Reflow Temperature: Pure-Tin - Sn, 100: 260-270°C - Flammability Rating UL 94V-0 - 8mm Tape and Reel per EIA Standard 481 applications - RS-232, RS-422 &...
