RB056L-40 Datasheet Schottky Diodes

Manufacturer: Kexin Semiconductor

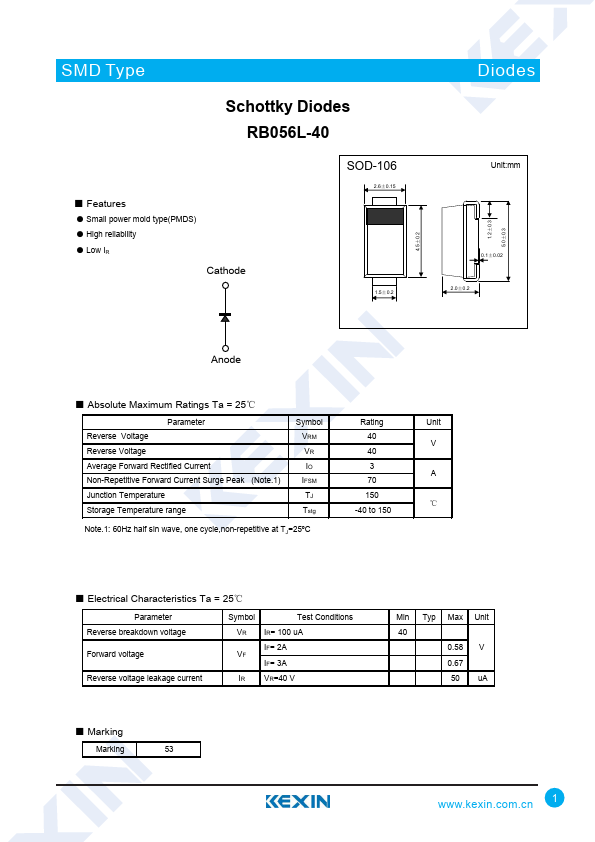

Overview: SMD Type Schottky Diodes RB056L-40 ■.

Key Features

  • s.
  • Small power mold type(PMDS).
  • High reliability.
  • Low IR Cathode SOD-106 2.6±0.15 1.5±0.2 4.5±0.2 1.2±0.3 5.0±0.3 Diodes Unit:mm 0.1±0.02 2.0±0.2 Anode.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Reverse Voltage Reverse Voltage VRM 40 V VR 40 Average Forward Rectified Current IO 3 A Non-Repetitive Forward Current Surge Peak (Note.1) IFSM 70 Junction Temperature Storage Temperature range TJ 150 ℃ Tstg -40 to 150 Note.1: 60Hz hal.
