RB056L-40 - Schottky Barrier Diode

Datasheet Summary

Features

  • )Small power mold type. (PMDS) 2)Low IR 3)High reliability PMDS.
  • Construction Silicon epitaxial planer.
  • Structure .
  • Taping specifications(Unit : mm) 4.0±0.1 2.0±0.05 φ1.55±0.05 1.75±0.1 0.3 5.5±0.05 φ1.55 2.9±0.1 4.0±0.1 2.8MAX.
  • Absolute maximum ratings (Ta=25C) Parameter Reverse voltage (repetitive) Reverse voltage (DC) Average rectified forward current (.
  • 1) Forward current surge peak (60Hz / 1cyc) Junction temperature Storage temperature (.
  • 1)Mounting on epoxi boa.

📥 Download Datasheet

Datasheet preview – RB056L-40

Datasheet Details

Part number RB056L-40
Manufacturer ROHM
File Size 346.66 KB
Description Schottky Barrier Diode
Datasheet download datasheet RB056L-40 Datasheet

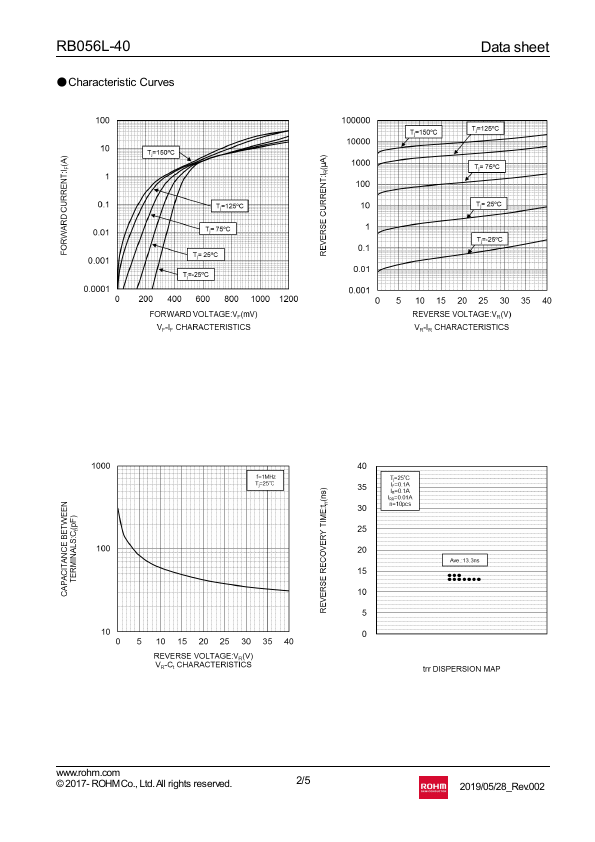

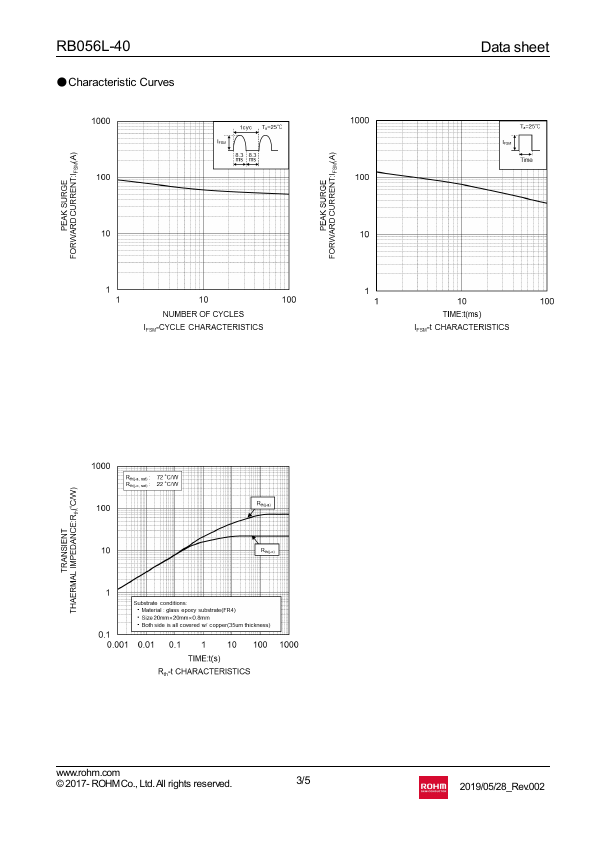

Additional preview pages of the RB056L-40 datasheet.

📁 Similar Datasheet

  • RB0807 - Radial Bobbin Inductors (Allied Components International)
Other Datasheets by Rohm

Full PDF Text Transcription

▶ Click to expand full text
www.DataSheet4U.com Schottky Barrier Diode RB056L-40 Applications General rectification Dimensions(Unit : mm)  Land size figure(Unit : mm) 2.0 2.0 Features 1)Small power mold type.(PMDS) 2)Low IR 3)High reliability PMDS Construction Silicon epitaxial planer Structure  Taping specifications(Unit : mm) 4.0±0.1 2.0±0.05 φ1.55±0.05 1.75±0.1 0.3 5.5±0.05 φ1.55 2.9±0.1 4.0±0.1 2.
