Kexin Electronics RB080L-30
Schottky Diodes
| Part No. | RB080L-30 |
|---|---|
| Datasheet | RB080L-30 Download |
| Manufacturer | Kexin Electronics |
| Description | Schottky Diodes |
| Buy | Stock & Price |

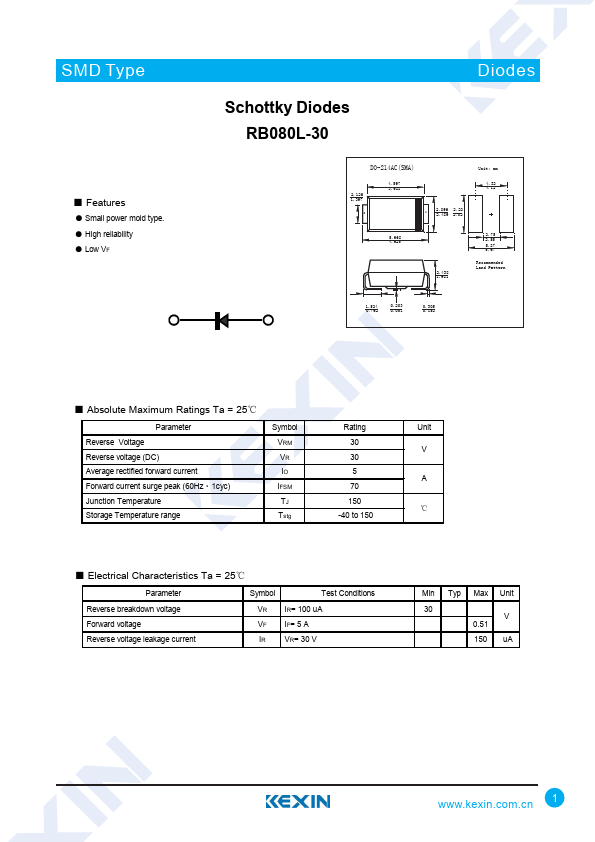

FEATURES
● Small power mold type.● High reliability
● Low VF Diodes Schottky Diodes RB080L-30 DO-214AC(SMA) 2.126 1.397 2 4.597 3.988 2.896 2.22 1 2.489 2.02 Unit: mm 4.32 4.12 5.668 4.925 2.438 1.981 2.75 2.55 5.87 5.67 Recommended Land Pattern 1.524 0.762 0.203 0.051 0.305 0.152
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Symbol Rating Unit Reverse Voltage Reverse voltage (DC) VRM 30 V VR 30 Average rectified forward current IO 5 A Forward current surge peak (60Hz●1cyc) IFSM 70 Junction Temperature Storage Temperature range TJ 150 ℃ Tstg -40 to 150●
ELECTRICAL CHARACTERISTICS

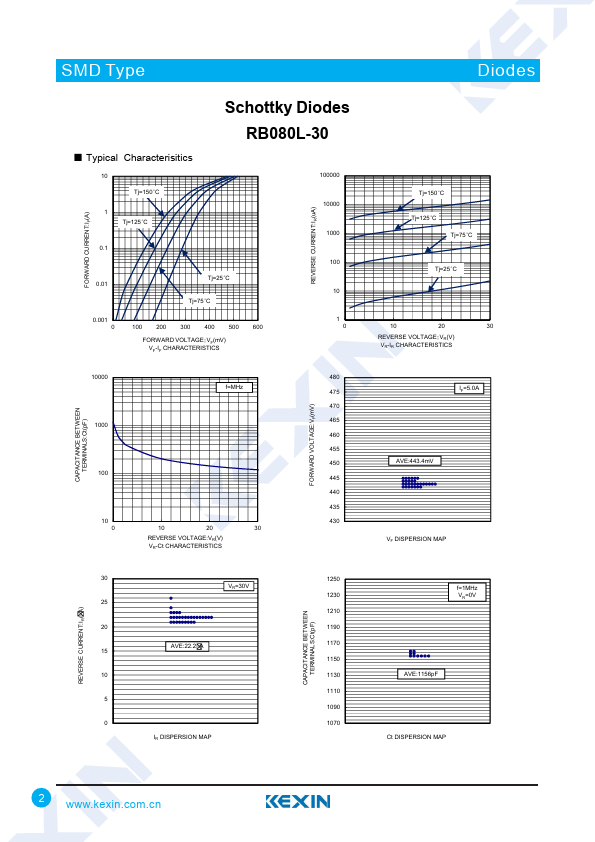

Ta = 25℃ Parameter Reverse breakdown voltage Forward voltage Reverse voltage leakage current Symbol Test Conditions VR IR= 100 uA VF IF= 5 A IR VR= 30 V Min Typ Max Unit 30 V 0.51 150 uA 1 SMD Type Schottky Diodes RB080L-30● Typical Characterisitics 10 Tj=150°C 1 Tj=125°C 0.1 FORWARD CURRENT:IF(A) 0.01 0.001 0 Tj=25°C Tj=75°C 100 200 300 400 500 600 FORWARD VOLTAGE：VF(mV) VF-IF CHARACTERISTICS REVERSE CURRE...
