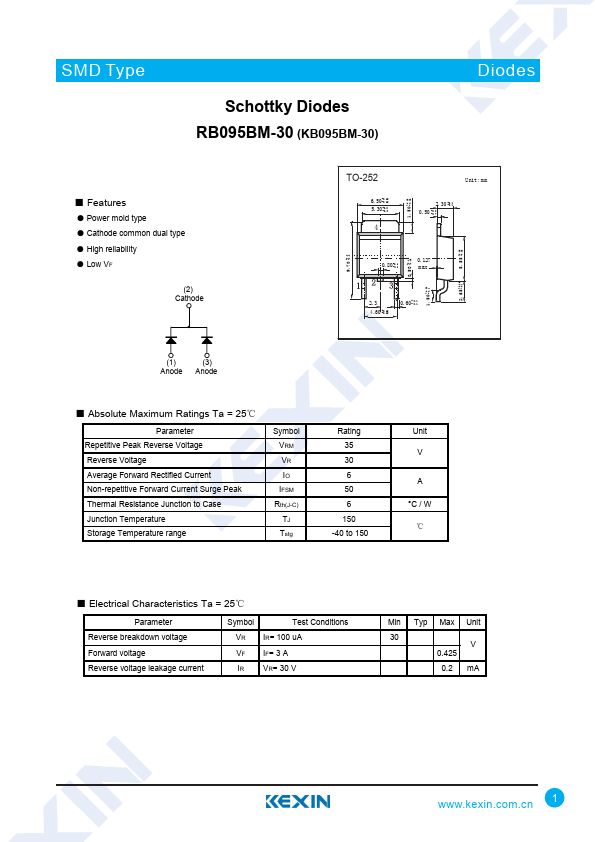

RB095BM-30
RB095BM-30 is Schottky Diodes manufactured by Kexin Semiconductor.
SMD Type
Schottky Diodes RB095BM-30 (KB095BM-30)
Diodes
- Features
- Power mold type
- Cathode mon dual type
- High reliability
- Low VF
(2) Cathode
+ 9.70 0.2 -0.2
TO-252
6.50+0.15 -0.15
5.30+0.2 -0.2 4
+ 1.50 0.15 -0.15
Unit: mm
2.30 +0.1 -0.1
0.50 +0.8 -0.7
+ 5.55 0.15 -0.15
0.80+0.1 -0.1
0.127 m ax
+ 0.25 2 .6 5 -0.1
+ 0.15 0 .5 0 -0.15
+ 0.28 1 .5 0 -0.1
2.3 4 .60 +0.15
-0.15
0.60+ 0.1
- 0.1
(1)
(3)
Anode...
