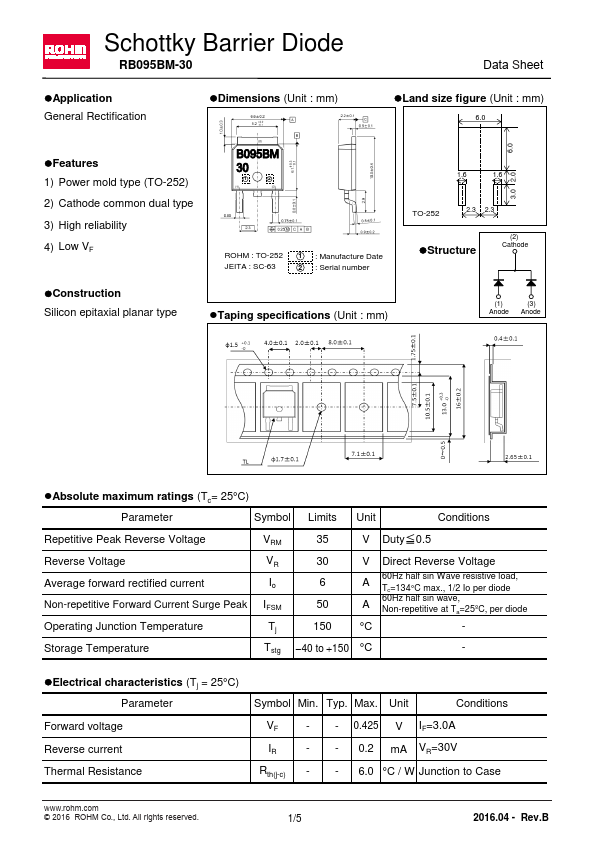

RB095BM-30 Datasheet Schottky Barrier Diode

Manufacturer: ROHM

Datasheet Details

Schottky Barrier Diode RB095BM-30 lApplication General Rectification lDimensions (Unit : mm) Data Sheet lLand size figure (Unit : mm) 6.0 3.0 2.0 6.

1) Power mold type (TO-252) 2) Cathode common dual type 3) High reliability 4) Low VF lConstruction Silicon epitaxial planar type 1 ROHM : TO-252 JEITA : SC-63 1 : Manufacture Date lTaping specifications (Unit : mm) 1.6 1.6 TO-252 2.3 2.3 lStructure (2) Cathode (1) (3) Anode Anode lAbsolute maximum ratings (Tc= 25°C) Parameter Symbol Limits Unit Conditions Repetitive Peak Reverse Voltage VRM 35 V Duty≦0.5 Reverse Voltage Average forward rectified current Non-repetitive Forward Cu.
