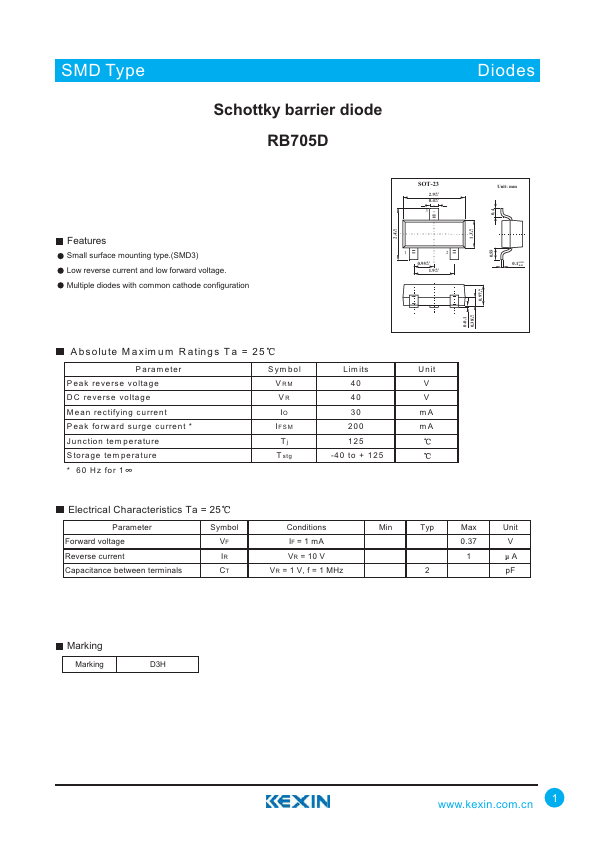

RB705D Datasheet PDF

FEATURES

Small surface mounting type.(SMD3) Low reverse current and low forward voltage. Multiple diodes with common cathode configuration +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 A bsolute M axim um R atings T a = 25 Param eter P eak reverse voltage D C reverse voltage M ean rectifying current Peak forward surge current * Junction tem perature Storage tem perature * 60 Hz for 1 Sym bol VRM VR IO IFSM Tj T stg Lim its 40 40 30 200 125 -40 to + 125 U nit V V mA mA 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 1.Base 2.Emitter 3.collector

ELECTRICAL CHARACTERISTICS

Ta = 25 Parameter Forward voltage Reverse current Capacitance between terminals Symbol VF IR CT Conditions IF = 1 mA VR = 10 V VR = 1 V, f = 1 MHz Min Typ Max Unit 0.37 V 1 A 2 pF Marking Marking D3H 1
