Kexin Electronics RN2305
Digital PNP Transistors
| Part No. | RN2305 |
|---|---|
| Datasheet | RN2305 Download |
| Manufacturer | Kexin Electronics |
| Description | Digital PNP Transistors |
| Buy | Stock & Price |
FEATURES

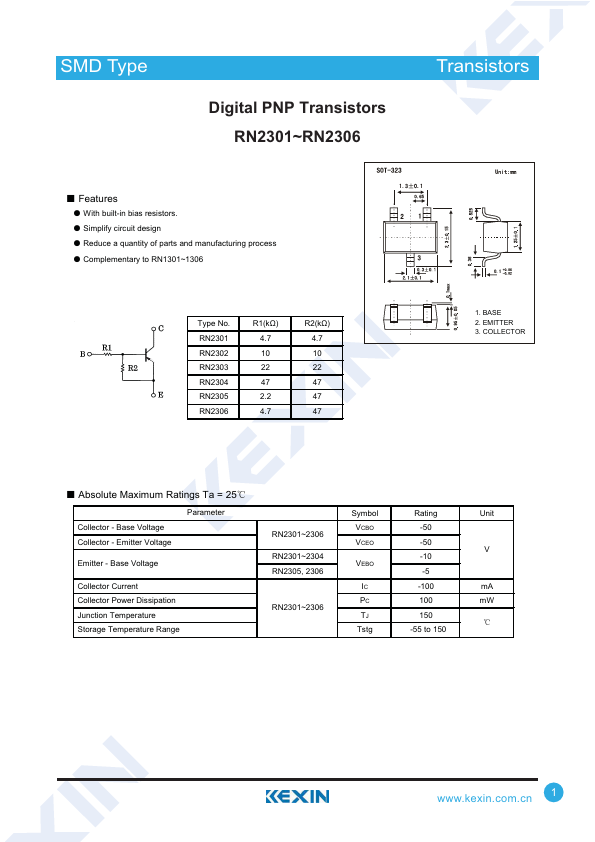

ƽ With built-in bias resistors. ƽ Simplify circuit design ƽ Reduce a quantity of parts and manufacturing process ƽ Complementary to RN1301~1306 Type No. RN2301 RN2302 RN2303 RN2304 RN2305 RN2306 R1(kȍ) 4.7 10 22 47 2.2 4.7 R2(kȍ) 4.7 10 22 47 47 47 1. BASE 2. EMITTER 3. COLLECTOR ƵABSOLUTE MAXIMUM RATINGS

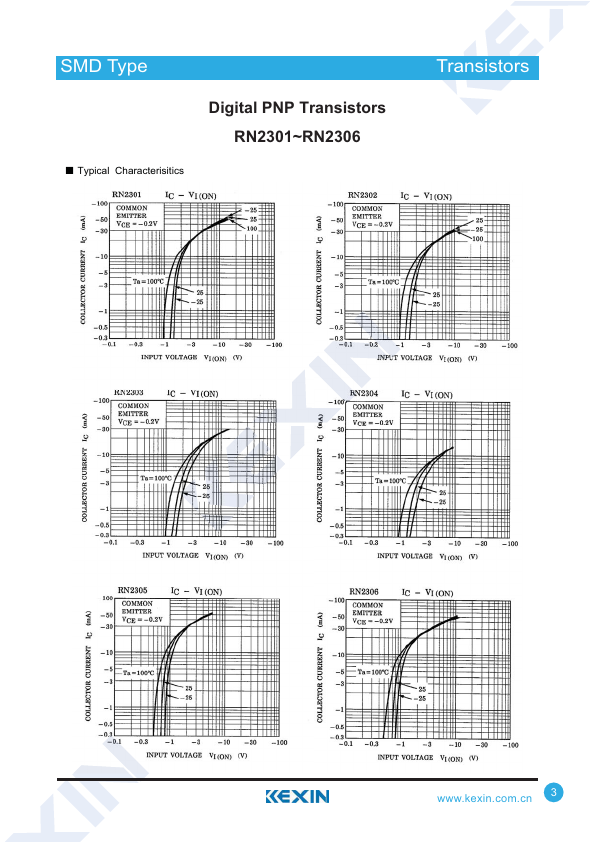

Ta = 25ć Collector - Base Voltage Collector - Emitter Voltage Parameter Emitter - Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Range Symbol Rating Unit VCBO -50 RN2301~2306 VCEO -50 V RN2301~2304 -10 VEBO RN2305, 2306 -5 IC -100 mA RN2301~2306 PC TJ Tstg 100 mW 150 ć -55 to 150 1 SMD Type TTrraannssiissttoorrss Digital PNP Transistors RN2301~RN2306 ƵELECTRICAL CHARACTERISTICS

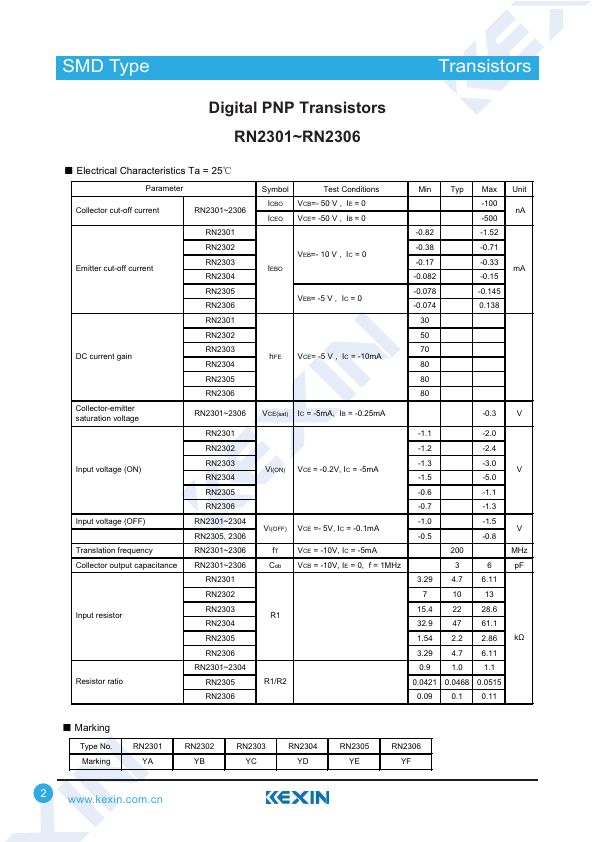

Ta = 25ć Parameter Collector cut-off current RN2301~2306 Emitter cut-off current DC current gain Collector-emitter saturation voltage Input voltage (ON) Input voltage (OFF) Translation frequency Collector output capacitance Input resistor Resistor...
