RN2305 - Silicon PNP Epitaxial Type Transistors

Product Overview

Toshiba

Part number	RN2305
Manufacturer	Toshiba
File Size	1.37 MB
Description	Silicon PNP Epitaxial Type Transistors
Datasheet	RN2305 Datasheet
Note	This datasheet PDF includes multiple part numbers: RN2305, RN2301. Please refer to the document for exact specifications by model.
Additional preview pages of the RN2305 datasheet.

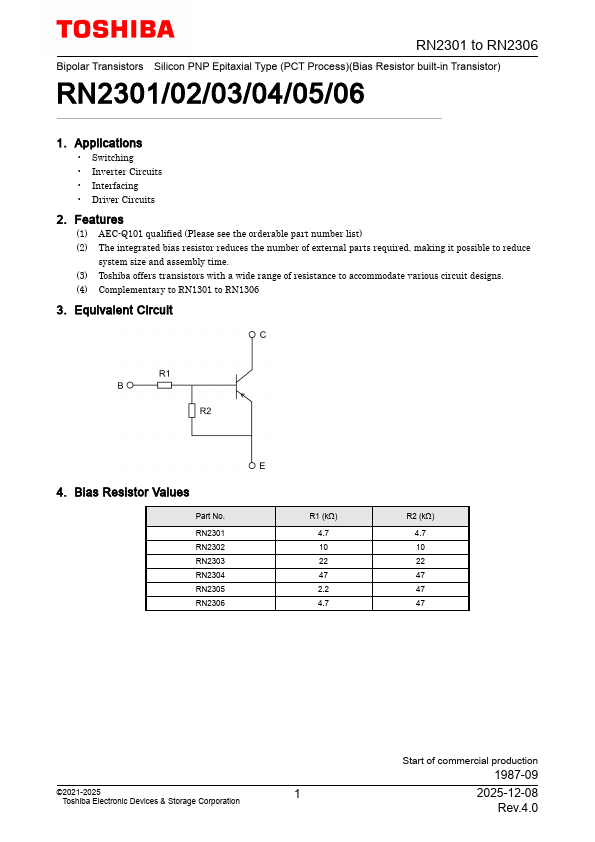

(1) AEC-Q101 qualified (Please see the orderable part number list) (2) The integrated bias resistor reduces the number of external parts required, making it possible to reduce system size and assembly time. (3) Toshiba offers transistors with a wide range of resistance to accommodate various circuit designs. (4) Complementary to RN1301 to RN1306 3. Equivalent Circuit 4. Bias Resistor Values Part No. RN2301 RN2302 RN2303 RN2304 RN2305 RN2306 R1 (kΩ) 4.7 10 22 47 2.2 4.7 R2 (kΩ) 4.7 10 22 47 47.
