RN2301
RN2301 is manufactured by Kexin Semiconductor.

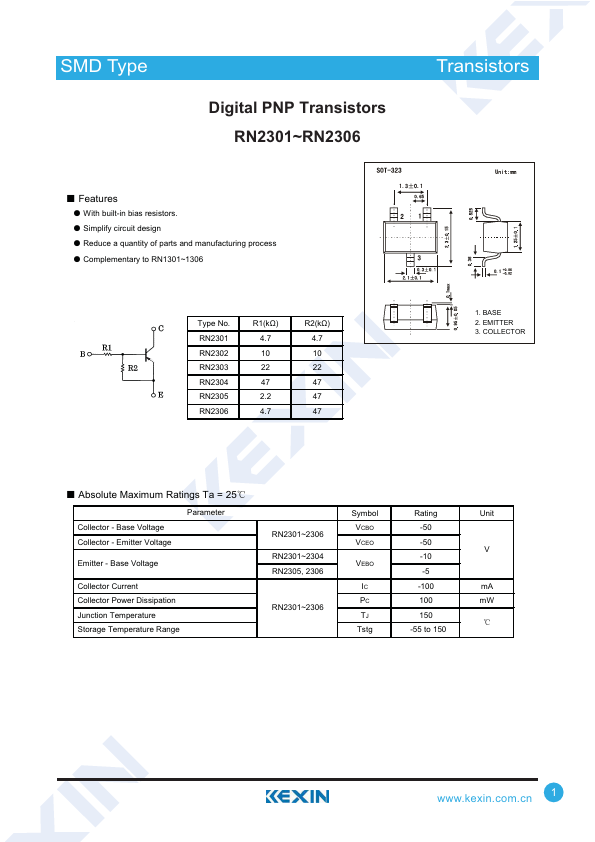

SMD Type
Digital PNP Transistors RN2301~RN2306
TTrraannssiissttoorrss
Ƶ Features
ƽ With built-in bias resistors. ƽ Simplify circuit design ƽ Reduce a quantity of parts and manufacturing process ƽ plementary to RN1301~1306
Type No. RN2301 RN2302 RN2303 RN2304 RN2305 RN2306
R1(kȍ) 4.7 10 22 47 2.2 4.7
R2(kȍ) 4.7 10 22 47 47 47
1. BASE 2. EMITTER 3. COLLECTOR
Ƶ...
