RN2303 Overview
Key Specifications
Package: SC
Mount Type: Surface Mount
Pins: 3
Max Operating Temp: 150 °C
Key Features
- Equivalent Circuit

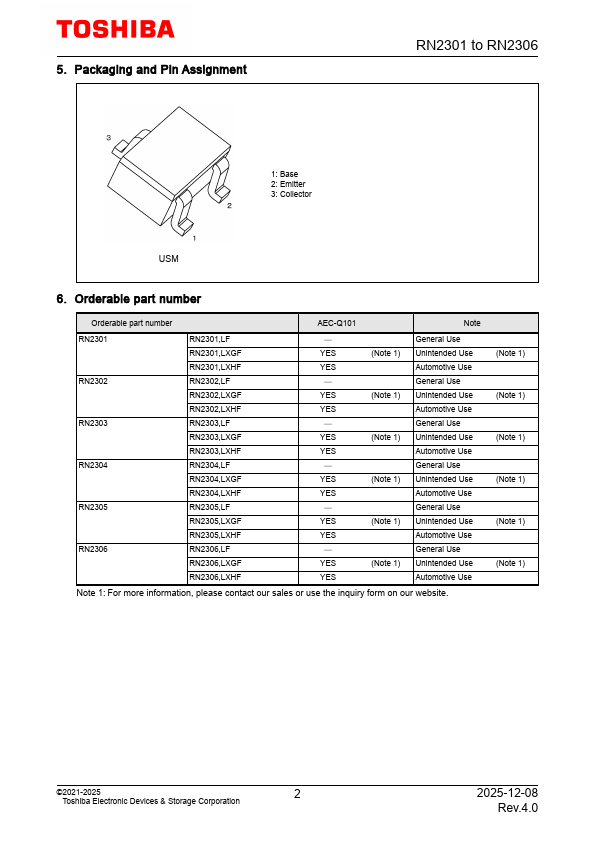

- Packaging and Pin Assignment RN2301 to RN2306 1: Base 2: Emitter 3: Collector USM
| Part | RN2303 |
|---|---|
| Description | Silicon PNP Epitaxial Type Transistors |
| Category | Transistor |
| Manufacturer | Toshiba |
| Size | 1.34 MB |
Pricing from 0.134 USD, available from CoreStaff and Verical.
