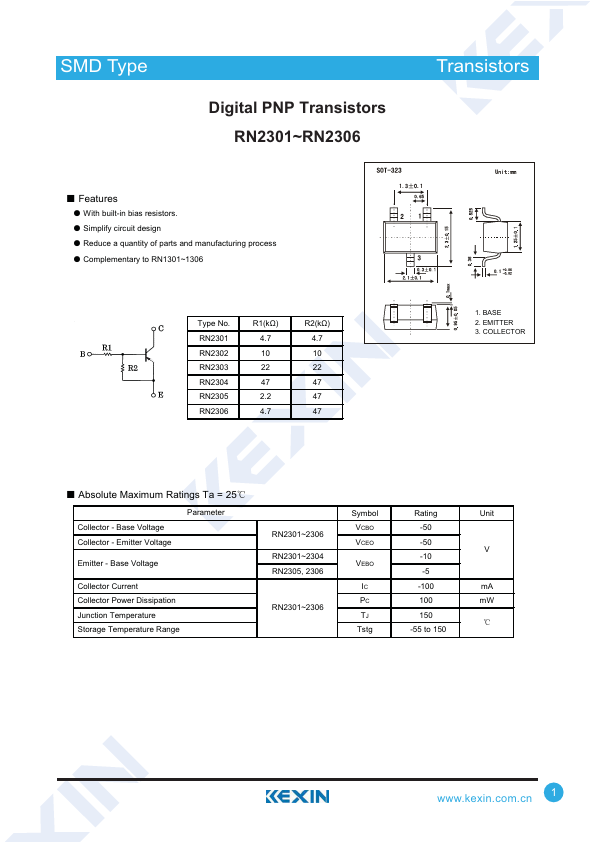

RN2303 is Digital PNP Transistors manufactured by Kexin Semiconductor.
- Part of the RN2301 comparator family.
- Part of the RN2301 comparator family.
Features
ƽ With built-in bias resistors. ƽ Simplify circuit design ƽ Reduce a quantity of parts and manufacturing process ƽ plementary to RN1301~1306
Type No. RN2301 RN2302 RN2303 RN2304 RN2305 RN2306
R1(kȍ) 4.7 10 22 47 2.2 4.7
R2(kȍ) 4.7 10 22 47 47 47
1. BASE 2. EMITTER 3. COLLECTOR
Ƶ Absolute Maximum Ratings Ta = 25ć
Collector
- Base Voltage Collector
- Emitter Voltage
Parameter
Emitter
- Base Voltage
Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Range
Symbol
Rating
Unit
VCBO
-50
RN2301~2306
VCEO
-50
RN2301~2304
-10
VEBO
RN2305, 2306
-5
-100 m A
RN2301~2306
PC TJ Tstg
100 m W
150 ć
-55 to 150
.kexin..cn 1
SMD Type
TTrraannssiissttoorrss
Digital PNP Transistors RN2301~RN2306

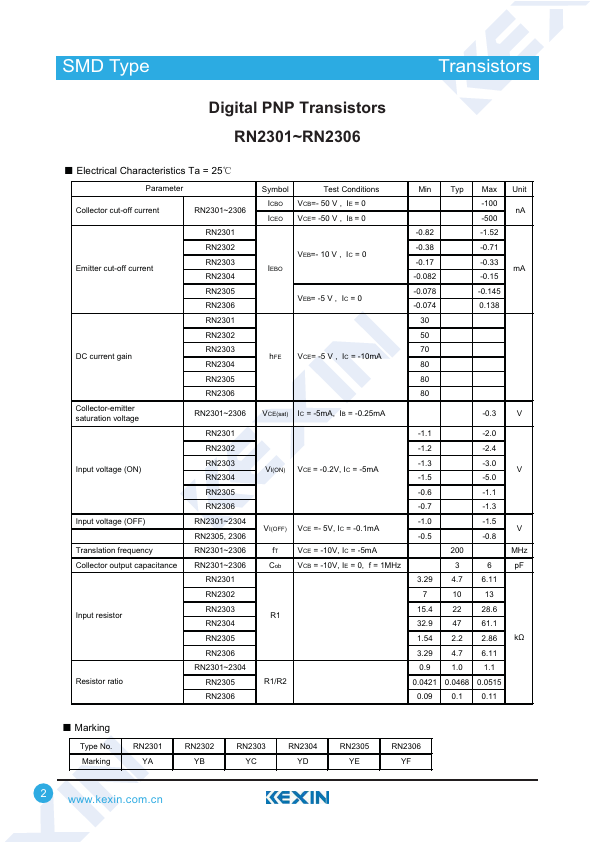

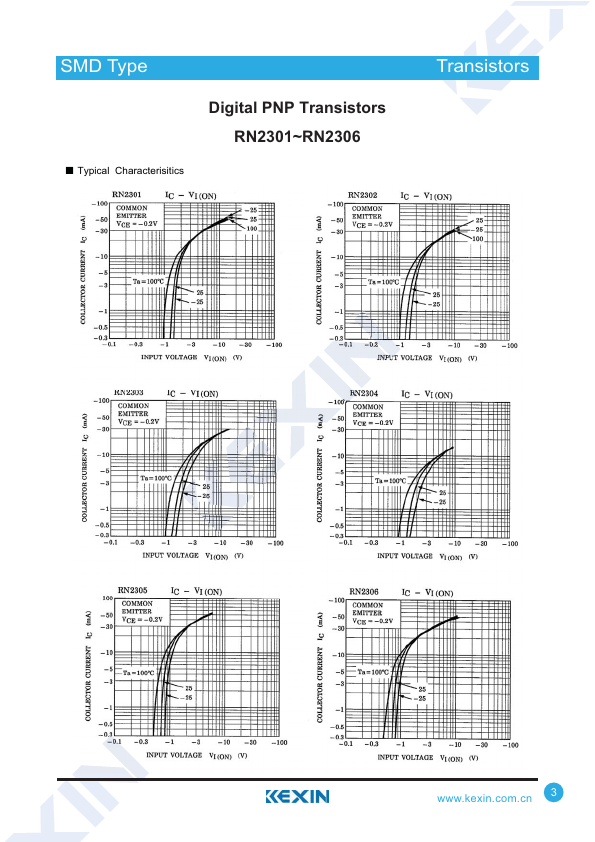

Ƶ Electrical Characteristics Ta =...
