RRH040P03 - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-30V.
  • ID =-4 A (VGS =-10V).
  • RDS(ON) ＜ 75mΩ (VGS =-10V).
  • RDS(ON) ＜ 115mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 125mΩ (VGS =-4V) +0.04 0.21 -0.02 SOP-8 S D S D S D G D MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipation Avalanche energy, Single Pulse (Note.4).

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
RRH040P03 Pch -30V -4A Power MOSFET Rohm
RRH050P03 Pch -30V -5A Power MOSFET Rohm
RRH075P03 Pch -30V -7.5A Power MOSFET Rohm
RRH090P03 Pch -30V -9A Power MOSFET Rohm
RRH100P03 4V Drive Pch MOSFET Rohm

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

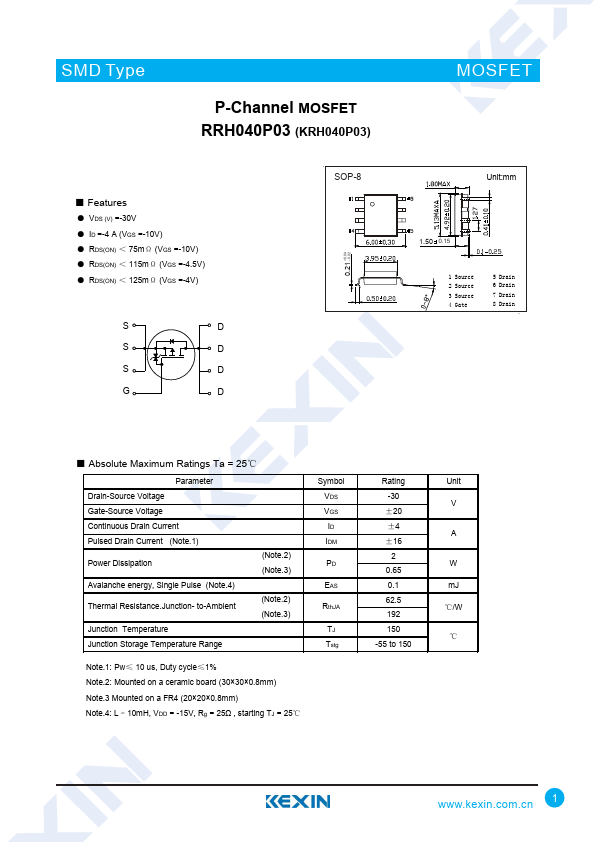

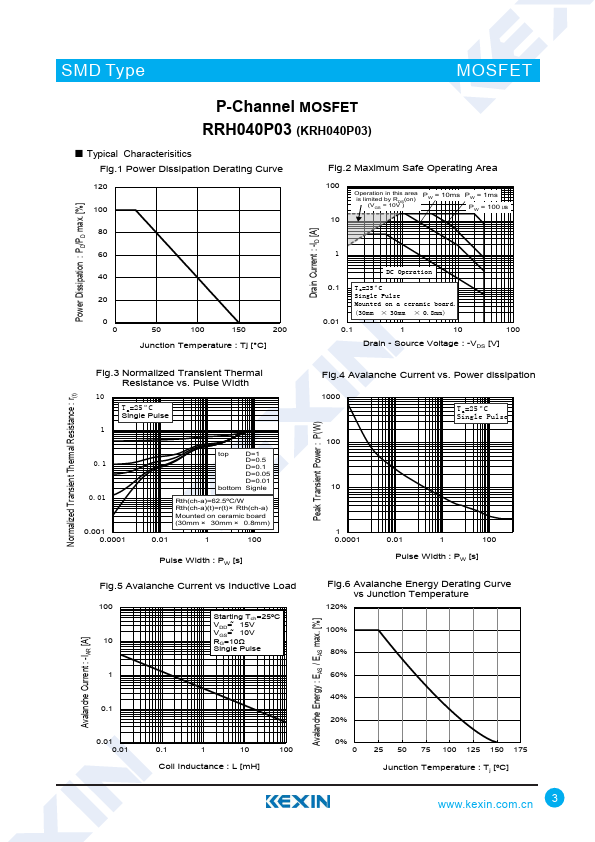

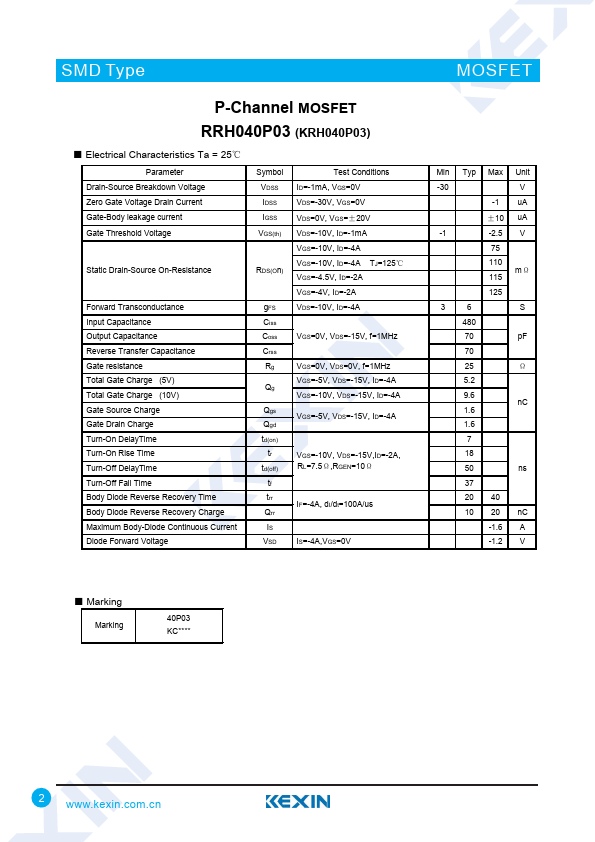

SMD Type P-Channel MOSFET RRH040P03 (KRH040P03) ■ Features ● VDS (V) =-30V ● ID =-4 A (VGS =-10V) ● RDS(ON) ＜ 75mΩ (VGS =-10V) ● RDS(ON) ＜ 115mΩ (VGS =-4.5V) ● RDS(ON) ＜ 125mΩ (VGS =-4V) +0.04 0.21 -0.02 SOP-8 S D S D S D G D MOSFET Unit:mm 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipation Avalanche energy, Single Pulse (Note.4) Thermal Resistance.Junction- to-Ambient Junction Temperature Junction Storage Temperature Range (Note.2) (Note.3) (Note.2) (Note.3) Symbol VDS VGS ID IDM PD EAS RthJA TJ Tstg Note.1: Pw≤ 10 us, Duty cycle≤1% Note.2: Mounted on a ceramic board (30×30×0.
