RRH040P03 - Pch -30V -4A Power MOSFET

Datasheet Summary

Features

  • 1) Low on - resistance. -30V 75mW -4A 2.0W 2) Built-in G-S Protection Diode. 3) Small Surface Mount Package (SOP8). 4) Pb-free lead plating ; RoHS compliant lOutline SOP8 (5) (6) (7) (8) lInner circuit (4) (3) (2) (1) (1) Source (2) Source (3) Source (4) Gate (5) Drain (6) Drain (7) Drain (8) Drain.
  • 1 ESD.

📥 Download Datasheet

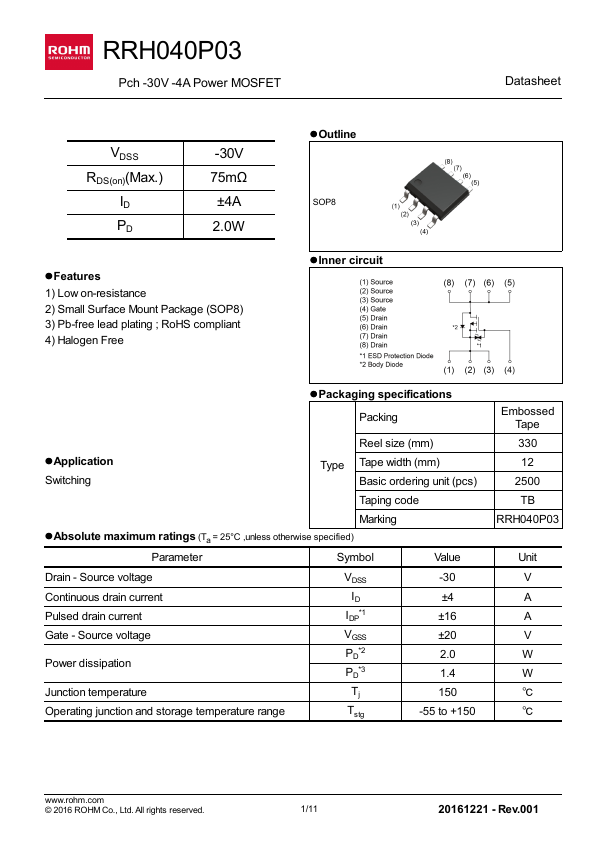

Datasheet preview – RRH040P03

Datasheet Details

Part number RRH040P03
Manufacturer ROHM
File Size 483.03 KB
Description Pch -30V -4A Power MOSFET
Datasheet download datasheet RRH040P03 Datasheet

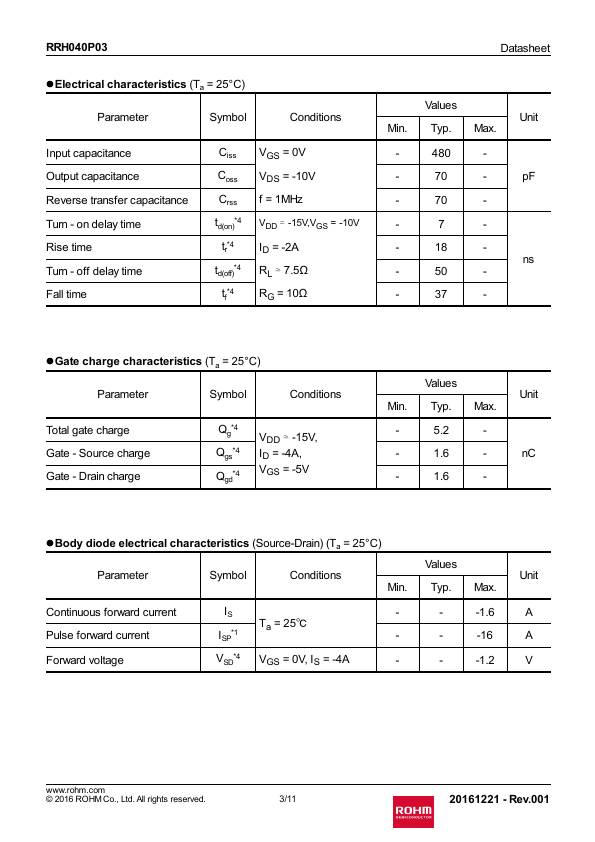

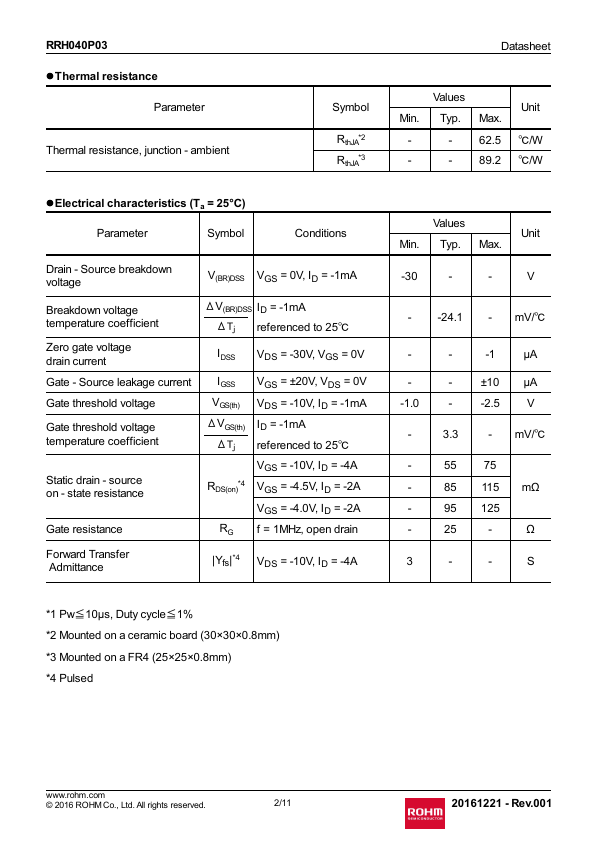

Additional preview pages of the RRH040P03 datasheet.

📁 Similar Datasheet

  • RRH46410 - Digital Gas Sensor (Renesas)
  • RRH47000 - NDIR CO2 Sensor (Renesas)
  • RRH62000 - All-in-one Air Quality Module (Renesas)
Other Datasheets by Rohm

Full PDF Text Transcription

Click to expand full text
RRH040P03 Pch -30V -4A Power MOSFET Datasheet VDSS RDS(on) (Max.) ID PD lFeatures 1) Low on - resistance. -30V 75mW -4A 2.0W 2) Built-in G-S Protection Diode. 3) Small Surface Mount Package (SOP8).
