SD18C Key Features
- 15kV, Contact
- 8kV ƽ 61000-4-4 (EFT): 40A
- 5/50ns ƽ 61000-4-5 (Surge): 12A, 8/20μs
- Level 1(Line-Ground) & Level 2(Line-Line)
- Part: SD18C
- Manufacturer: Kexin Semiconductor (official site)
- Size: 146.16 KB
Other SD18C Datasheets
| Manufacturer | Part Number | Description |
|---|---|---|
Leiditech |
SD18C | BIDIRECTIONAL TVS DIODE |
Lenovo |
SD18C07920 | LCD Module |
KD |
SD18 | STANDARD CAPACITANCE TVS ARRAY / ESD ARRAY |
Diodes Incorporated |
SD18 | 320W UNIDIRECTIONAL TVS DIODE |
| UDF UDF |
SD18 | Unidirectional TVS Diode |
SD18C Description

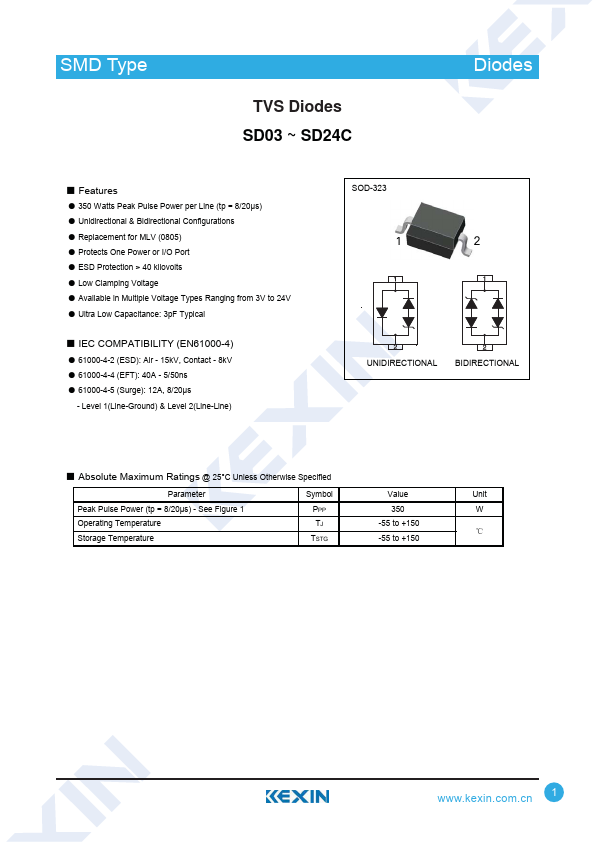

SMD Type TVS Diodes SD03 ~ SD24C T Diodes.
