SI2314EDS - N-Channel Enhancement MOSFET

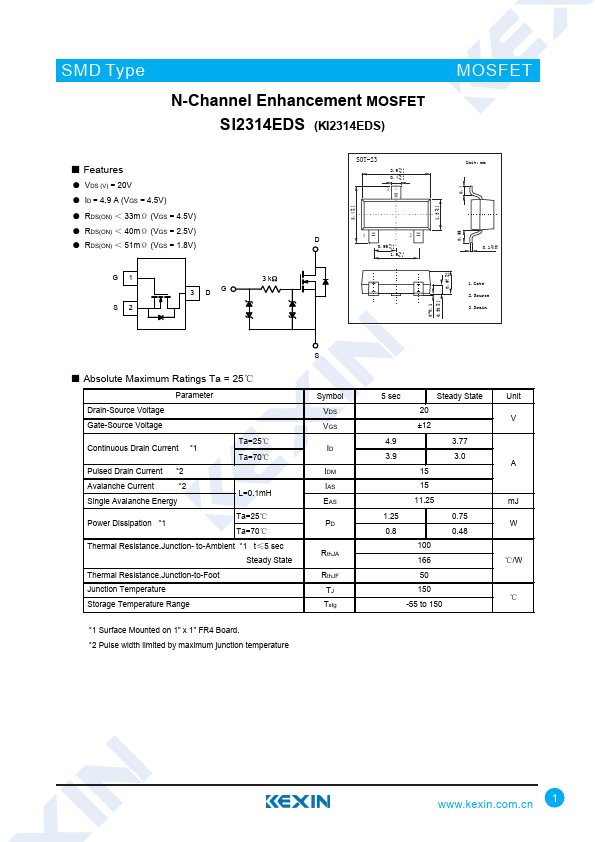

Key Features

  • s.
  • VDS (V) = 20V.
  • ID = 4.9 A (VGS = 4.5V).
  • RDS(ON) ＜ 33mΩ (VGS = 4.5V).
  • RDS(ON) ＜ 40mΩ (VGS = 2.5V).
  • RDS(ON) ＜ 51mΩ (VGS = 1.8V) G1 S2 3k 3 DG SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 +0.1 2.4 -0.1 1 2 D 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Cu.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI2314EDS N-Channel MOSFET Vishay Siliconix
SI2310 N-channel FET MCC
SI2310 N-Channel Power MOSFET CCSemi
SI2310 N-channel MOSFET PUOLOP
SI2310 N-Channel 60V MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
SI2312DS N-Channel Enhancement MOSFET
SI2318CDS N-Channel MOSFET
SI2318DS N-Channel MOSFET
SI2300 N-Channel MOSFET
SI2301 P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

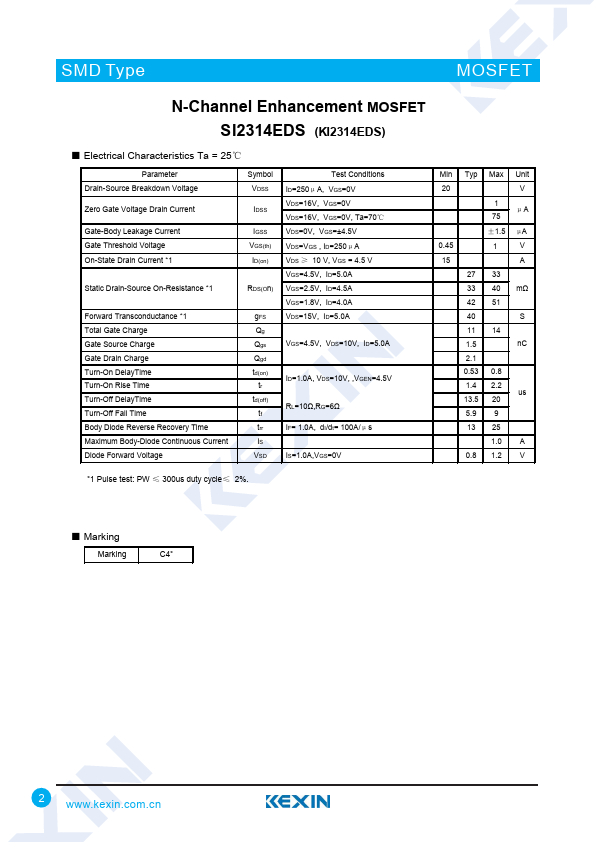

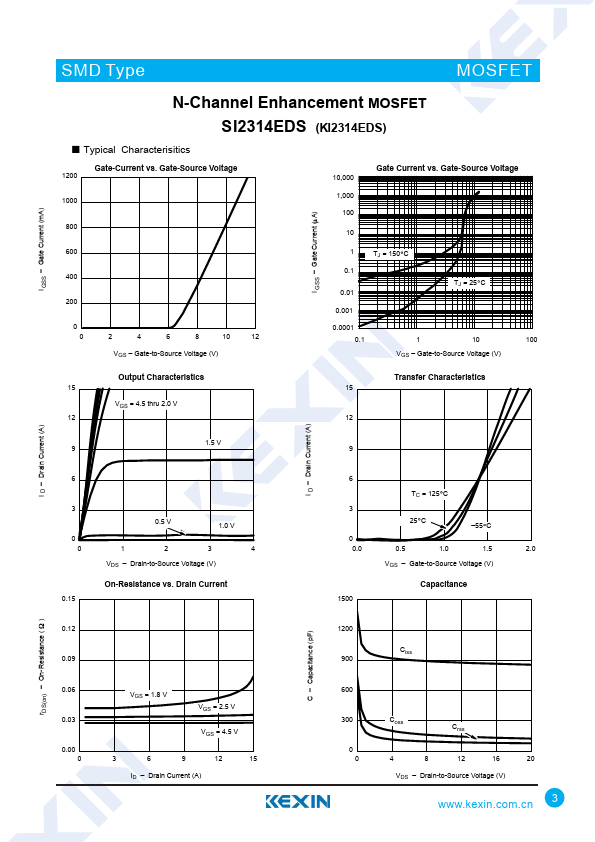

SMD Type N-Channel Enhancement MOSFET SI2314EDS (KI2314EDS) ■ Features ● VDS (V) = 20V ● ID = 4.9 A (VGS = 4.5V) ● RDS(ON) ＜ 33mΩ (VGS = 4.5V) ● RDS(ON) ＜ 40mΩ (VGS = 2.5V) ● RDS(ON) ＜ 51mΩ (VGS = 1.8V) G1 S2 3k 3 DG SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 +0.1 2.4 -0.1 1 2 D 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current *1 Pulsed Drain Current *2 Ta=25℃ Ta=70℃ Avalanche Current *2 Single Avalanche Energy L=0.1mH Power Dissipation *1 Ta=25℃ Ta=70℃ Thermal Resistance.Junction- to-Ambient *1 t≤5 sec Steady State Thermal Resistance.
