SI2335DS Datasheet P-channel Enhancement MOSFET

Manufacturer: Kexin Semiconductor

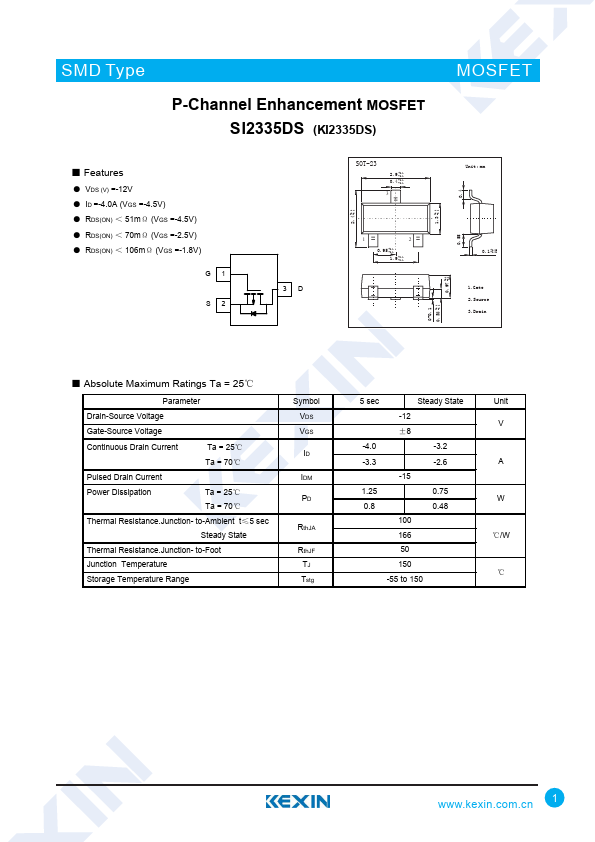

Overview: SMD Type P-Channel Enhancement MOSFET SI2335DS (KI2335DS) ■.

Key Features

  • s.
  • VDS (V) =-12V.
  • ID =-4.0A (VGS =-4.5V).
  • RDS(ON) ＜ 51mΩ (VGS =-4.5V).
  • RDS(ON) ＜ 70mΩ (VGS =-2.5V).
  • RDS(ON) ＜ 106mΩ (VGS =-1.8V) G1 S2 3D +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1.Gate 2.Source 3.Drain 0-0.1 +0.1 0.38 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Ta.
