SI2369DS - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-30V.
  • ID =-7.6A (VGS =±20V).
  • RDS(ON) ＜ 29mΩ (VGS =-10V).
  • RDS(ON) ＜ 34mΩ (VGS =-6V).
  • RDS(ON) ＜ 40mΩ (VGS =-4.5V) P-Channel MOSFET SI2369DS (KI2369DS) SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 +0.1 2.4 -0.1 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Cont.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
Si2369DS P-Channel MOSFET Vishay
Si2366DS N-Channel MOSFET Vishay
Si2367DS P-Channel MOSFET Vishay
SI2300 N-Channel MOSFET HAOCHANG
SI2300 N-Channel MOSFET CCSemi

Other Datasheets by Kexin Semiconductor

Part Number Description
SI2366DS N-Channel MOSFET
SI2300 N-Channel MOSFET
SI2301 P-Channel MOSFET
SI2301BDS P-Channel Enhancement MOSFET
SI2301DS P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

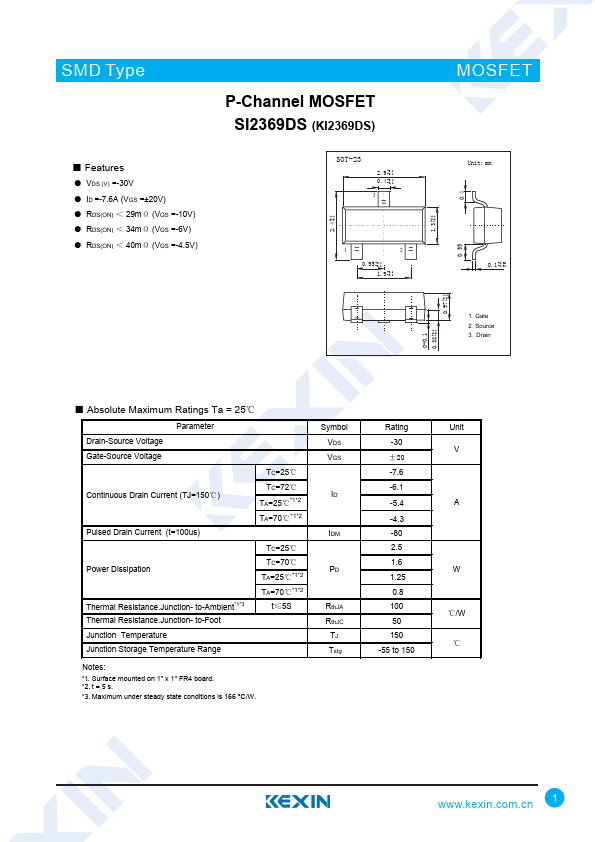

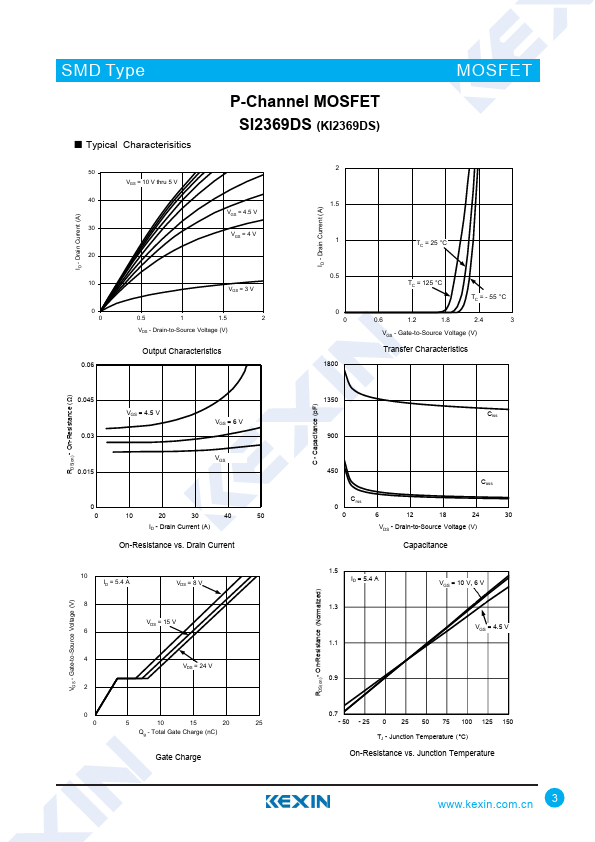

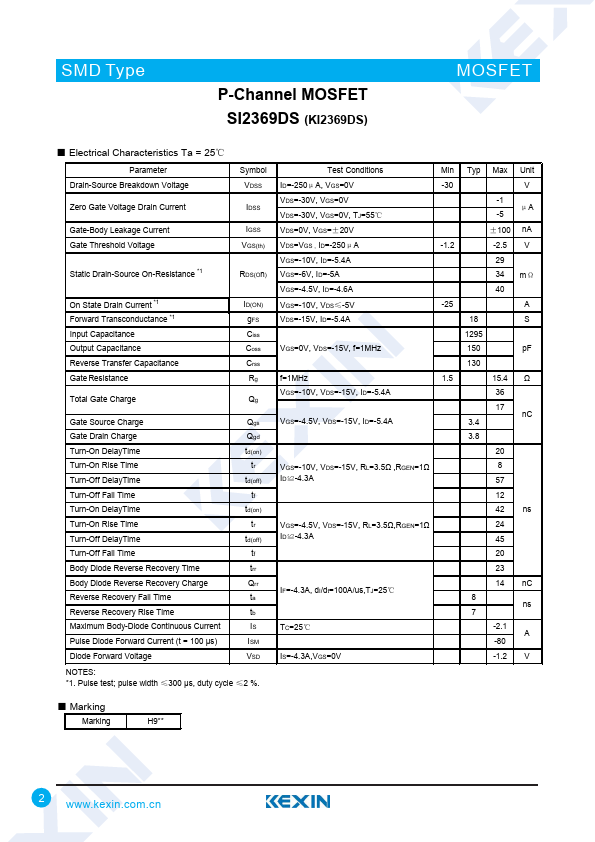

SMD Type ■ Features ● VDS (V) =-30V ● ID =-7.6A (VGS =±20V) ● RDS(ON) ＜ 29mΩ (VGS =-10V) ● RDS(ON) ＜ 34mΩ (VGS =-6V) ● RDS(ON) ＜ 40mΩ (VGS =-4.5V) P-Channel MOSFET SI2369DS (KI2369DS) SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 +0.1 2.4 -0.1 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 MOSFET Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Drain-Source Voltage Gate-Source Voltage Parameter Continuous Drain Current (TJ=150℃) Pulsed Drain Current (t=100us) Power Dissipation Thermal Resistance.Junction- to-Ambient*1*3 Thermal Resistance.
