SI2377EDS - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) = -20V.
  • ID = -4.4 A.
  • RDS(ON) ＜ 61mΩ (VGS = -4.5V).
  • RDS(ON) ＜ 80mΩ (VGS = -2.5V).
  • RDS(ON) ＜ 110mΩ (VGS = -1.8V).
  • RDS(ON) ＜ 165mΩ (VGS = -1.5V) S +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1 G R D.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Tc=25℃.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
Si2377EDS P-Channel 20V (D-S) MOSFET Vishay
Si2377EDS-T1-GE3 30V P-Channel MOSFET VBsemi
Si2371EDS P-Channel 30v MOSFET Vishay
SI2372DS N-Channel MOSFET Vishay
Si2374DS N-Channel MOSFET Vishay

Other Datasheets by Kexin Semiconductor

Part Number Description
SI2372DS N-Channel MOSFET
SI2300 N-Channel MOSFET
SI2301 P-Channel MOSFET
SI2301BDS P-Channel Enhancement MOSFET
SI2301DS P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

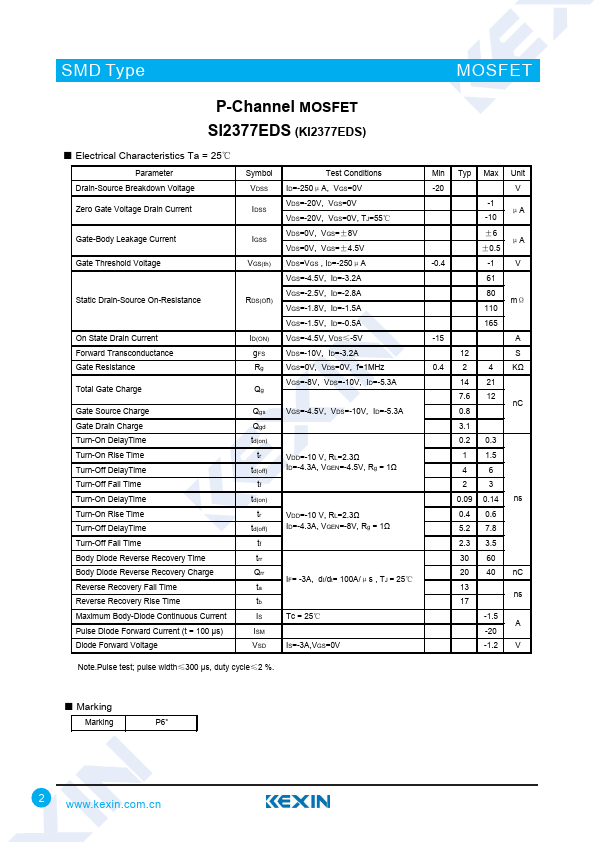

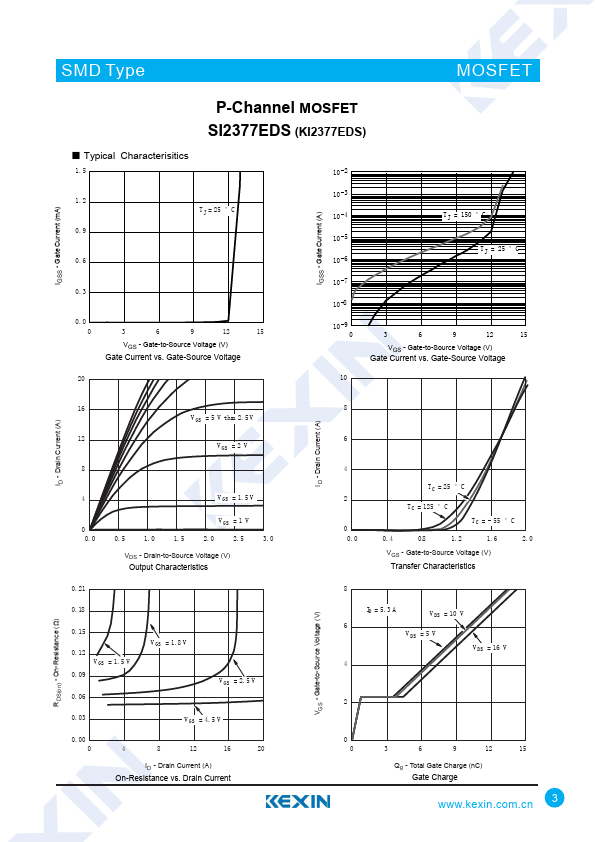

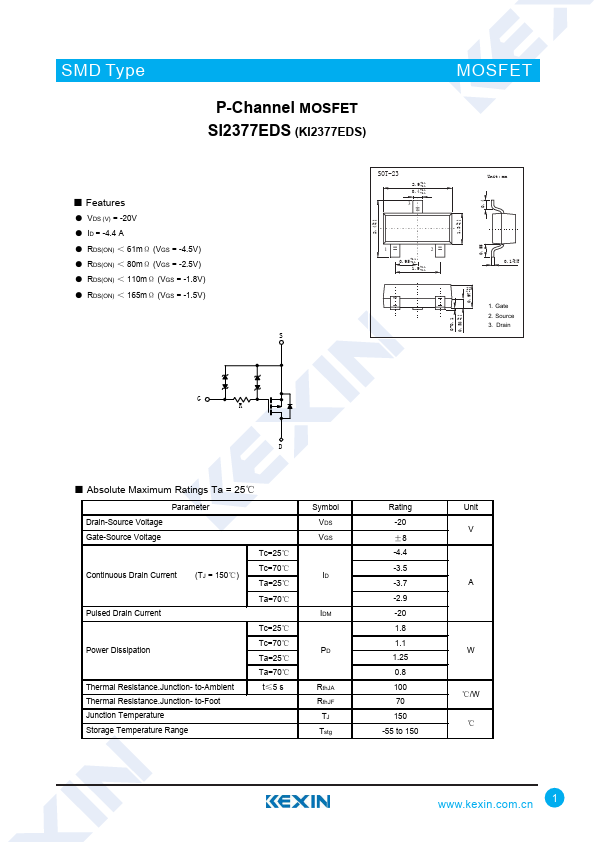

SMD Type P-Channel MOSFET SI2377EDS (KI2377EDS) MOSFET ■ Features ● VDS (V) = -20V ● ID = -4.4 A ● RDS(ON) ＜ 61mΩ (VGS = -4.5V) ● RDS(ON) ＜ 80mΩ (VGS = -2.5V) ● RDS(ON) ＜ 110mΩ (VGS = -1.8V) ● RDS(ON) ＜ 165mΩ (VGS = -1.5V) S +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.38 -0.1 G R D ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Tc=25℃ Continuous Drain Current (TJ = 150℃) Tc=70℃ Ta=25℃ Pulsed Drain Current Ta=70℃ Power Dissipation Thermal Resistance.Junction- to-Ambient Thermal Resistance.
