Si2377EDS - P-Channel 20V (D-S) MOSFET

Features

  • Halogen-free According to IEC 61249-2-21 Definition.
  • TrenchFET® Power MOSFET.
  • 100 % Rg Tested.
  • Typical ESD Performance 2000 V.
  • Built in ESD Protection with Zener Diode.
  • Compliant to RoHS Directive 2002/95/EC.

📥 Download Datasheet

Datasheet Details

Part number Si2377EDS
Manufacturer Vishay
File Size 126.26 KB
Description P-Channel 20V (D-S) MOSFET
Datasheet download datasheet Si2377EDS Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI2300 N-Channel MOSFET Kexin
SI2300 N-Channel MOSFET HAOCHANG
SI2300 N-Channel MOSFET CCSemi
SI2300 Plastic-Encapsulate Mosfets HOTTECH
SI2300 N-Channel MOSFET MCC

Other Datasheets by Vishay

Part Number Description
Si2371EDS P-Channel 30v MOSFET
SI2372DS N-Channel MOSFET
Si2374DS N-Channel MOSFET
SI2301ADS P-Channel MOSFET
SI2301CDS P-Channel MOSFET

Full PDF Text Transcription

Click to expand full text

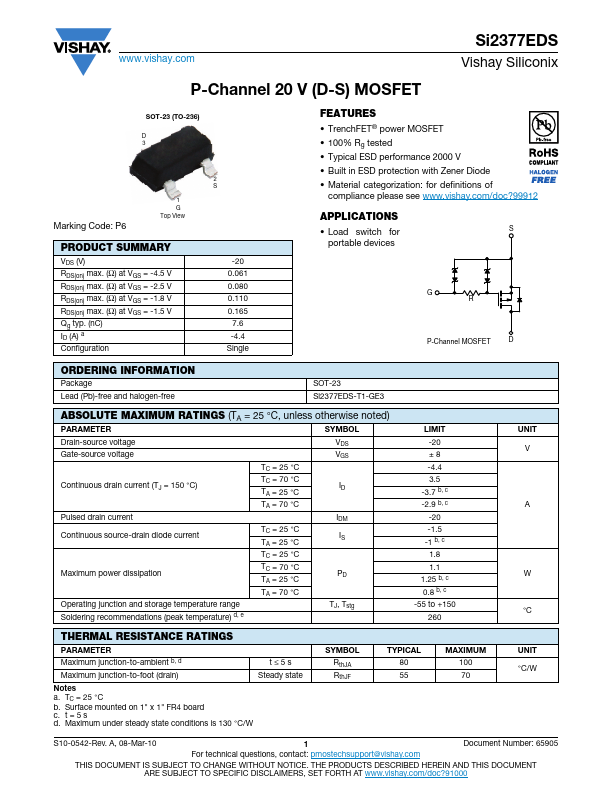

New Product P-Channel 20 V (D-S) MOSFET Si2377EDS Vishay Siliconix PRODUCT SUMMARY VDS (V) - 20 RDS(on) (Ω) 0.061 at VGS = - 4.5 V 0.080 at VGS = - 2.5 V 0.110 at VGS = - 1.8 V 0.165 at VGS = - 1.5 V ID (A)a - 4.4 - 3.8 - 3.3 - 0.5 Qg (Typ.) 7.
