SI3475DV - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-200V.
  • ID =-0.95 A (VGS =-10V).
  • RDS(ON) ＜ 1.61Ω (VGS =-10V).
  • RDS(ON) ＜ 1.65Ω (VGS =-6V) S G ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 +0.1 1.1 -0.1 1 Drain 4 Source 2 Drain 5 Drain D 3 Gate 6 Drain 0-0.1 +0.1 0.68 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Tc = 25℃ Continuous Drain Current (TJ = 150 °C) (Not.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SI3475DV P-Channel MOSFET Vishay Siliconix
Si3471 Autonomous Single Ethernet Port IEEE 802.3bt PoE PSE Skyworks
SI3471CDV P-Channel MOSFET Vishay Siliconix
Si3472 Octal or Quad 2-pair 802.3bt Ethernet Port PoE PSE Controller Skyworks
Si3473 Octal or Quad 2-pair 802.3bt Ethernet Port PoE PSE Controller Skyworks

Other Datasheets by Kexin Semiconductor

Part Number Description
SI3437DV P-Channel MOSFET
SI3437DV-HF P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

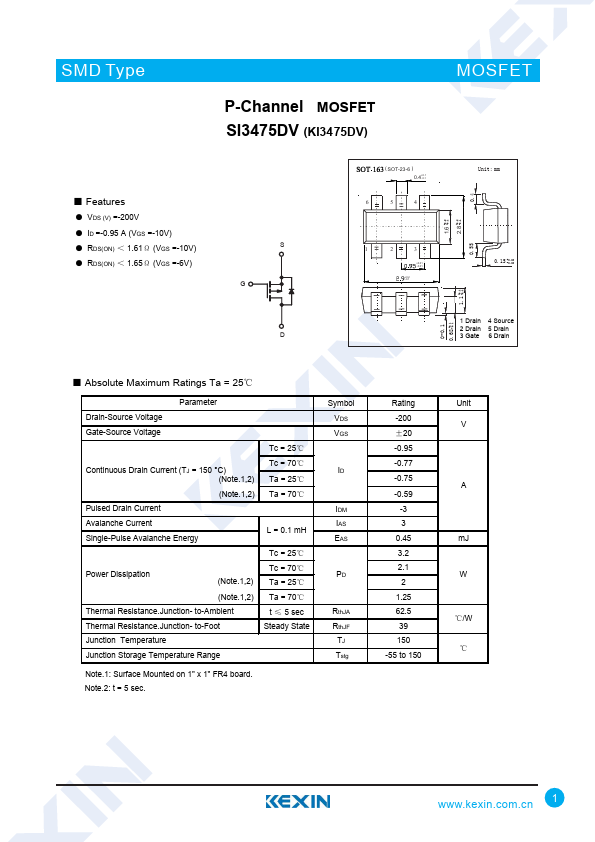

SMD Type P-Channel MOSFET SI3475DV (KI3475DV) MOSFET ■ Features ● VDS (V) =-200V ● ID =-0.95 A (VGS =-10V) ● RDS(ON) ＜ 1.61Ω (VGS =-10V) ● RDS(ON) ＜ 1.65Ω (VGS =-6V) S G ( SOT-23-6 ) 0.4+0.1 -0.1 6 5 4 1 2 3 +0.01 -0.01 +0.2 -0.1 +0.2 1.6 -0.1 +0.2 2.8 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 +0.1 1.1 -0.1 1 Drain 4 Source 2 Drain 5 Drain D 3 Gate 6 Drain 0-0.1 +0.1 0.68 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Tc = 25℃ Continuous Drain Current (TJ = 150 °C) (Note.1,2) Tc = 70℃ Ta = 25℃ Pulsed Drain Current (Note.1,2) Ta = 70℃ Avalanche Current Single-Pulse Avalanche Energy L = 0.1 mH Tc = 25℃ Power Dissipation (Note.1,2) Tc = 70℃ Ta = 25℃ (Note.1,2) Ta = 70℃ Thermal Resistance.
