SI9435DY - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) =-30V.
  • ID =-5.3 A (VGS =-10V).
  • RDS(ON) ＜ 50mΩ (VGS =-10V).
  • RDS(ON) ＜ 80mΩ (VGS =-4.5V).
  • Fast switching speed 5 4 6 3 7 2 8 1 +0.04 0.21 -0.02 SOP-8 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation (Note.1) (Note.2) (Note.3) Symbol VDS VGS ID IDM PD Thermal Resist.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
Si9435DY P-Channel MOSFET Vishay
SI9435DY-T1-E3 30V P-Channel MOSFET VBsemi
SI9435BDY P-Channel 30-V (D-S) MOSFET Vishay Siliconix
SI9430DY P-Channel 30-V (D-S) MOSFET Vishay Siliconix
SI9433DY P-Channel 20-V (D-S) MOSFET Vishay Siliconix

Other Datasheets by Kexin Semiconductor

Part Number Description
SI9435BDY P-Channel Enhancement MOSFET
SI9410DY N-Channel MOSFET
SI9926 Dual N-Channel MOSFET
SI9926BDY Dual N-Channel MOSFET
SI9926DY Dual N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

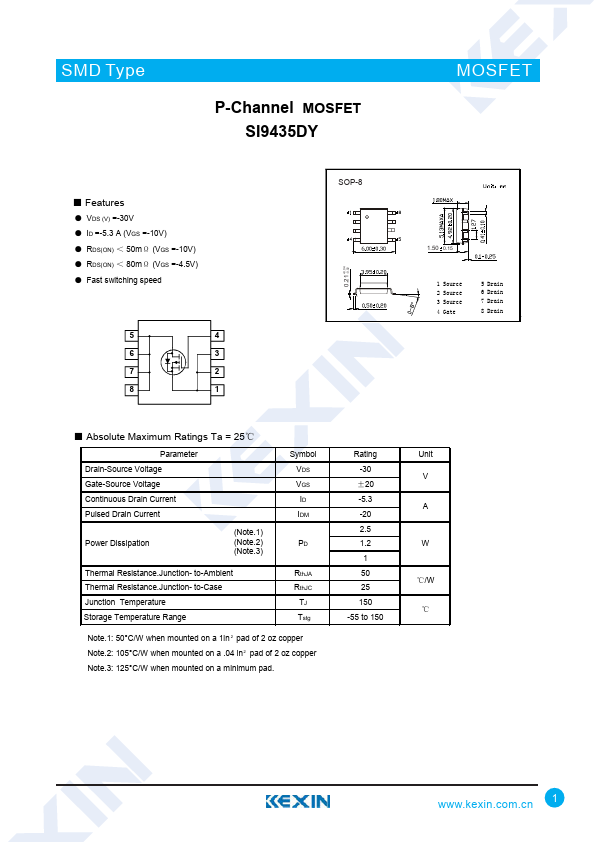

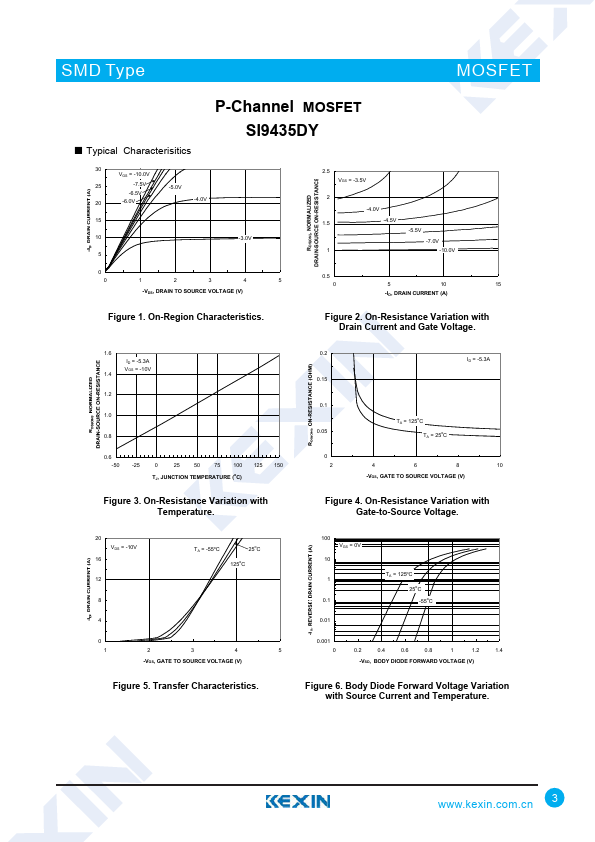

SMD Type P-Channel MOSFET SI9435DY MOSFET ■ Features ● VDS (V) =-30V ● ID =-5.3 A (VGS =-10V) ● RDS(ON) ＜ 50mΩ (VGS =-10V) ● RDS(ON) ＜ 80mΩ (VGS =-4.5V) ● Fast switching speed 5 4 6 3 7 2 8 1 +0.04 0.21 -0.02 SOP-8 1.50 0.15 1 Source 2 Source 3 Source 4 Gate 5 Drain 6 Drain 7 Drain 8 Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation (Note.1) (Note.2) (Note.3) Symbol VDS VGS ID IDM PD Thermal Resistance.Junction- to-Ambient Thermal Resistance.Junction- to-Case Junction Temperature Storage Temperature Range RthJA RthJC TJ Tstg Note.1: 50°C/W when mounted on a 1in 2 pad of 2 oz copper Note.2: 105°C/W when mounted on a .04 in2 pad of 2 oz copper Note.
