SIS2305PLT1G - P-Channel MOSFET

Key Features

  • s.
  • VDS (V) = -8V.
  • RDS(ON)＜0.052 Ω (VGS = -4.5V).
  • RDS(ON)＜0.071 Ω (VGS = -2.5V).
  • RDS(ON)＜0.108 Ω (VGS = -1.8V) D G S +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-source voltage Gate-source voltage Continuous drain current -- Pulsed drain current TA=25℃ TA=70.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SIS23C128 16K x 8 CMOS Mask ROM Silicon Integrated Systems
SIS23C128A 16K x 8 CMOS Mask ROM Silicon Integrated Systems
SIS23C32 4K x 8 CMOS MASK ROM Silicon Integrated Systems
SIS23C32A 4K x 8 CMOS MASK ROM Silicon Integrated Systems
SIS23C33 4K x 8 CMOS MASK ROM Silicon Integrated Systems

Other Datasheets by Kexin Semiconductor

Part Number Description
SISS27DN-T1-GE3 30V P-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

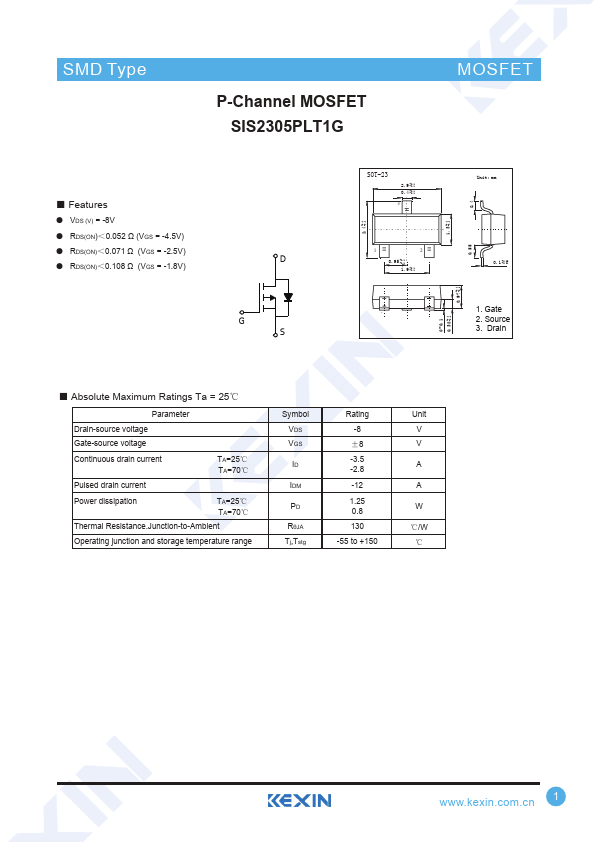

SMD Type P-Channel MOSFET SIS2305PLT1G MOSFET ■ Features ● VDS (V) = -8V ● RDS(ON)＜0.052 Ω (VGS = -4.5V) ● RDS(ON)＜0.071 Ω (VGS = -2.5V) ● RDS(ON)＜0.108 Ω (VGS = -1.8V) D G S +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 0-0.1 +0.1 0.38 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1. Gate 2. Source 3. Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-source voltage Gate-source voltage Continuous drain current -- Pulsed drain current TA=25℃ TA=70℃ Power dissipation -- TA=25℃ TA=70℃ Thermal Resistance.Junction-to-Ambient Operating junction and storage temperature range Symbol VDS VGS ID IDM PD RθJA Tj,Tstg Rating -8 ±8 -3.5 -2.8 -12 1.25 0.8 130 -55 to +150 Unit V V A A W ℃/W ℃ www.kexin.com.
