SM24

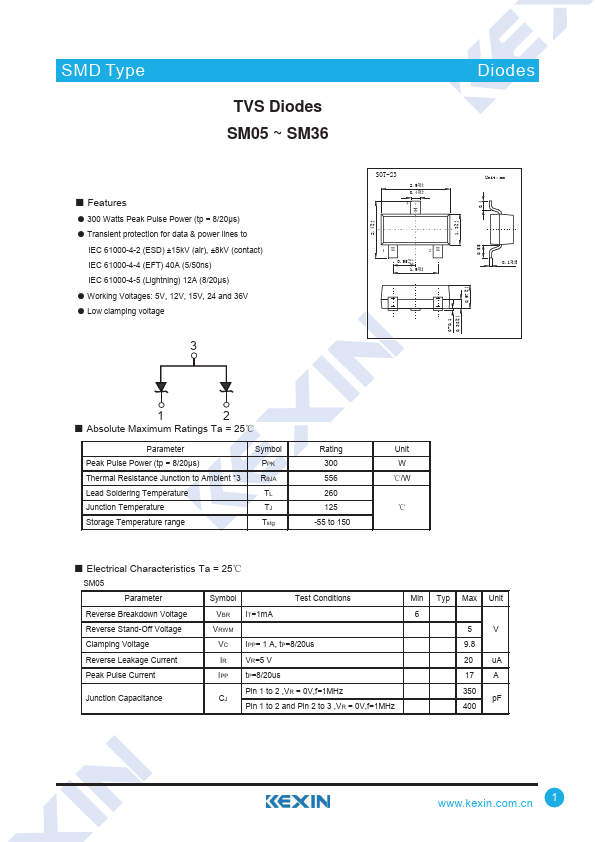

Features
ƽ 300 Watts Peak Pulse Power (tp = 8/20ȝs) ƽ Transient protection for data & power lines to
IEC 61000-4-2 (ESD) ±15k V (air), ±8k V (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 12A (8/20ȝs) ƽ Working Voltages: 5V, 12V, 15V, 24 and 36V ƽ Low clamping voltage
627
Diodes
8QLW PP
Ƶ Absolute Maximum Ratings Ta = 25ć
Parameter Peak Pulse Power (tp = 8/20ȝs) Thermal Resistance Junction to Ambient
- 3 Lead Soldering Temperature Junction Temperature Storage Temperature range
Symbol PPK RșJA TL TJ Tstg
Rating 300 556 260 125
-55 to 150
Unit W ć/W
ć

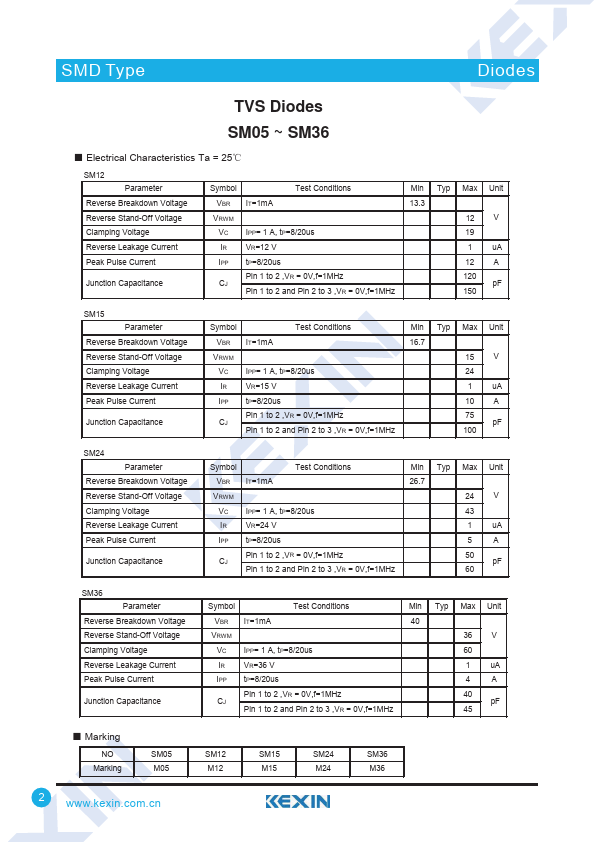

Ƶ Electrical Characteristics Ta = 25ć
SM05
Parameter
Symbol
Test Conditions
Reverse Breakdown Voltage
VBR IT=1m A
Reverse Stand-Off...
